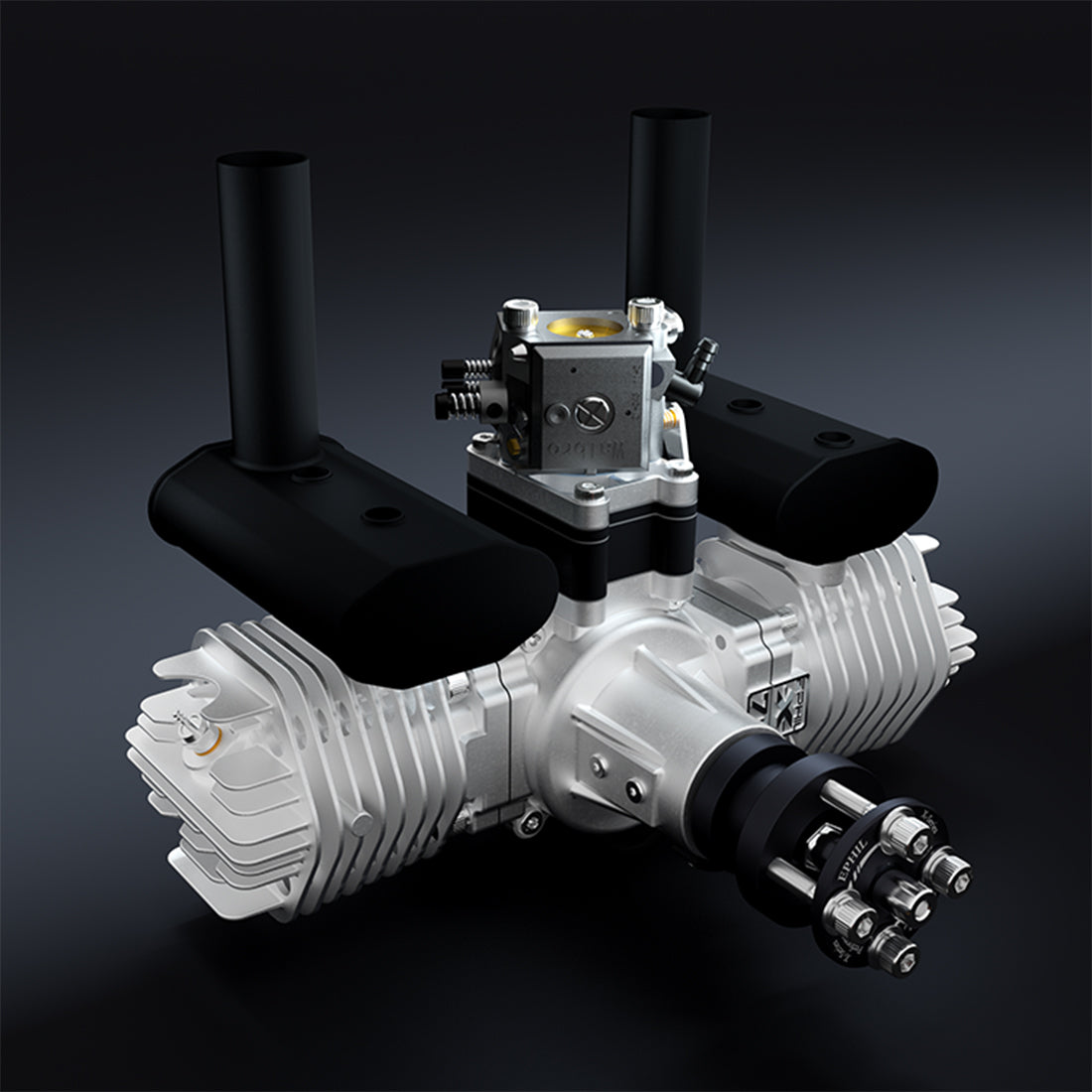

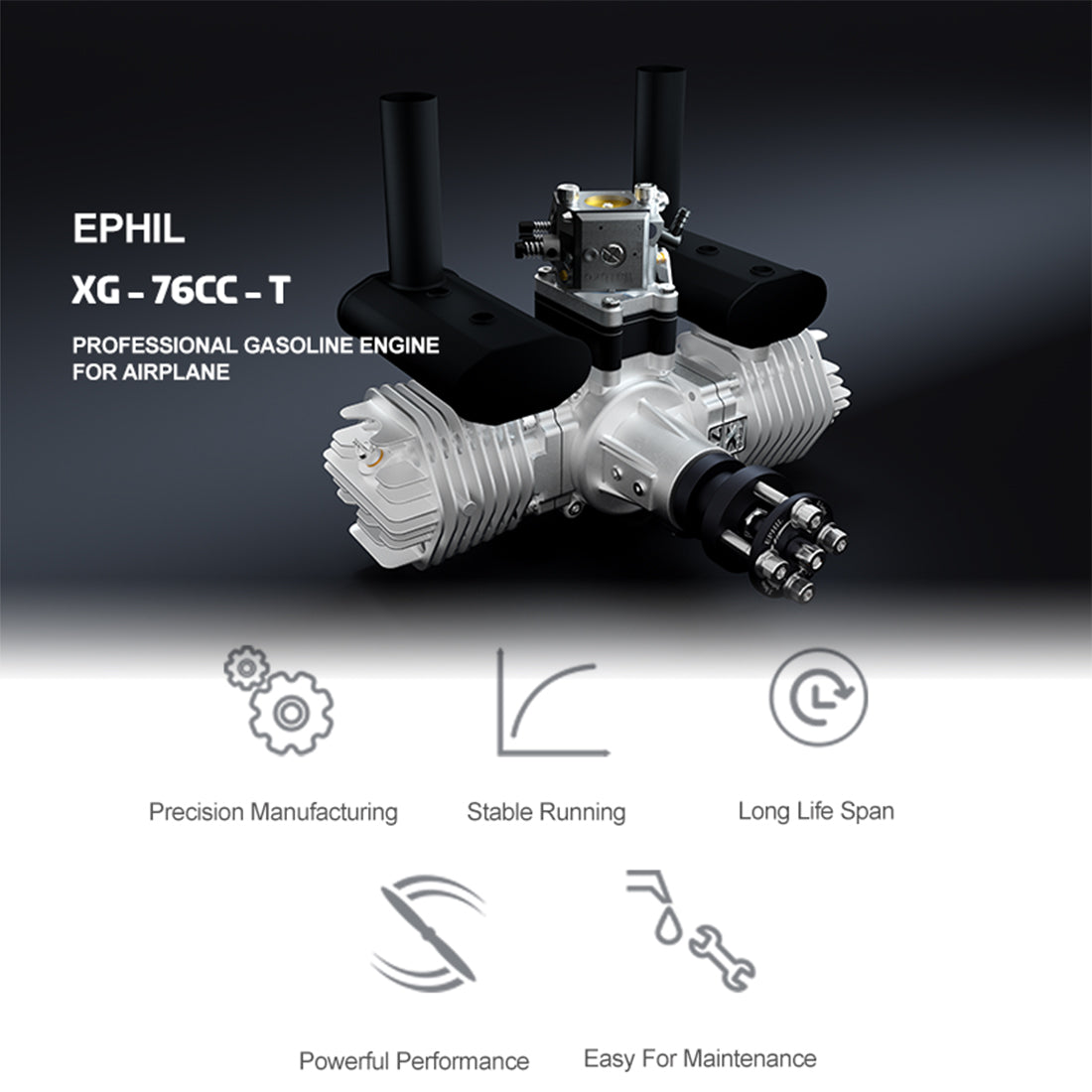

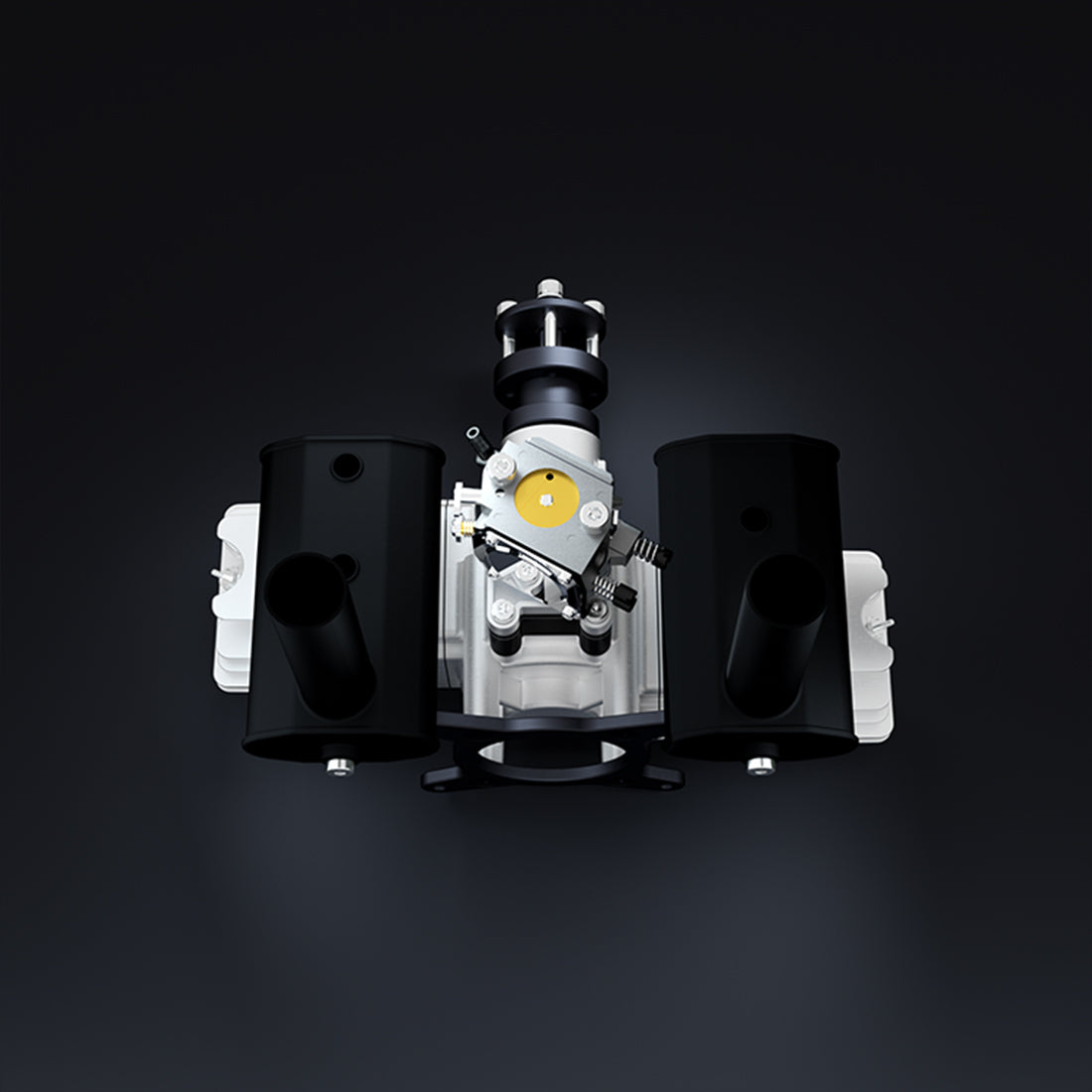

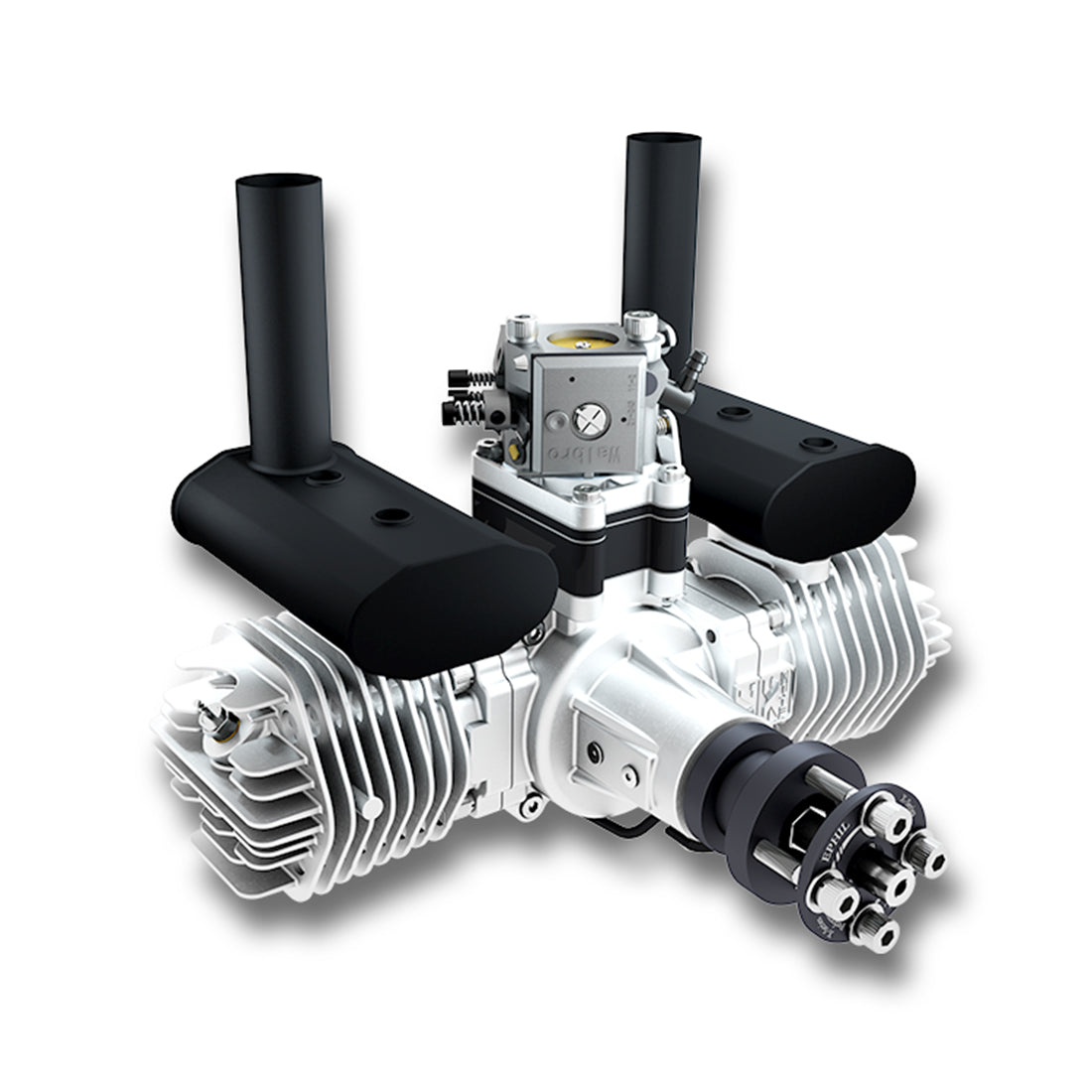

EPHIL XG-76cc-T Glow Plug Two-Stroke Twin-Cylinders Horizontally Opposed Gasoline Engine Model for Fixed-Wing Aircraft Models

Product Parameters:
Material: Metal
Color: As shown in the picture
Brand: EPHIL
Model-Model: XG-76cc-T
Displacement: 76cc (4.64 cu in)
Performance-Performance: 9.0 HP
Speed Range: 1600-7300 RPM (Test Paddle-24*9 )
Bore: 39 mm (1.54 in)
Stroke: 32.5 mm (1.28 in)
Rally-Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)
Rally-Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)
Compression Ratio: 9:1
Lubrication Ratio: 30:1 (Gasoline:Lubricant)
Supply Voltage - Ignition Voltage: 6-14V
Glow Plug Type: E8 (or OS G5) Hothead
Applicable Recommended Propeller: 22x10; 23x8; 23x10; 24x8
Weight of Main Engine: 1688g
Weight of Exhaust Pipe-Weight of Muffler Set: 174g (L&R Exhaust Pipe;Screws)
Weight of Aluminum Standoffs Set-Weight of Aluminum Standoffs Set: 72g
Weight of Glow Plug: 3.6g*2

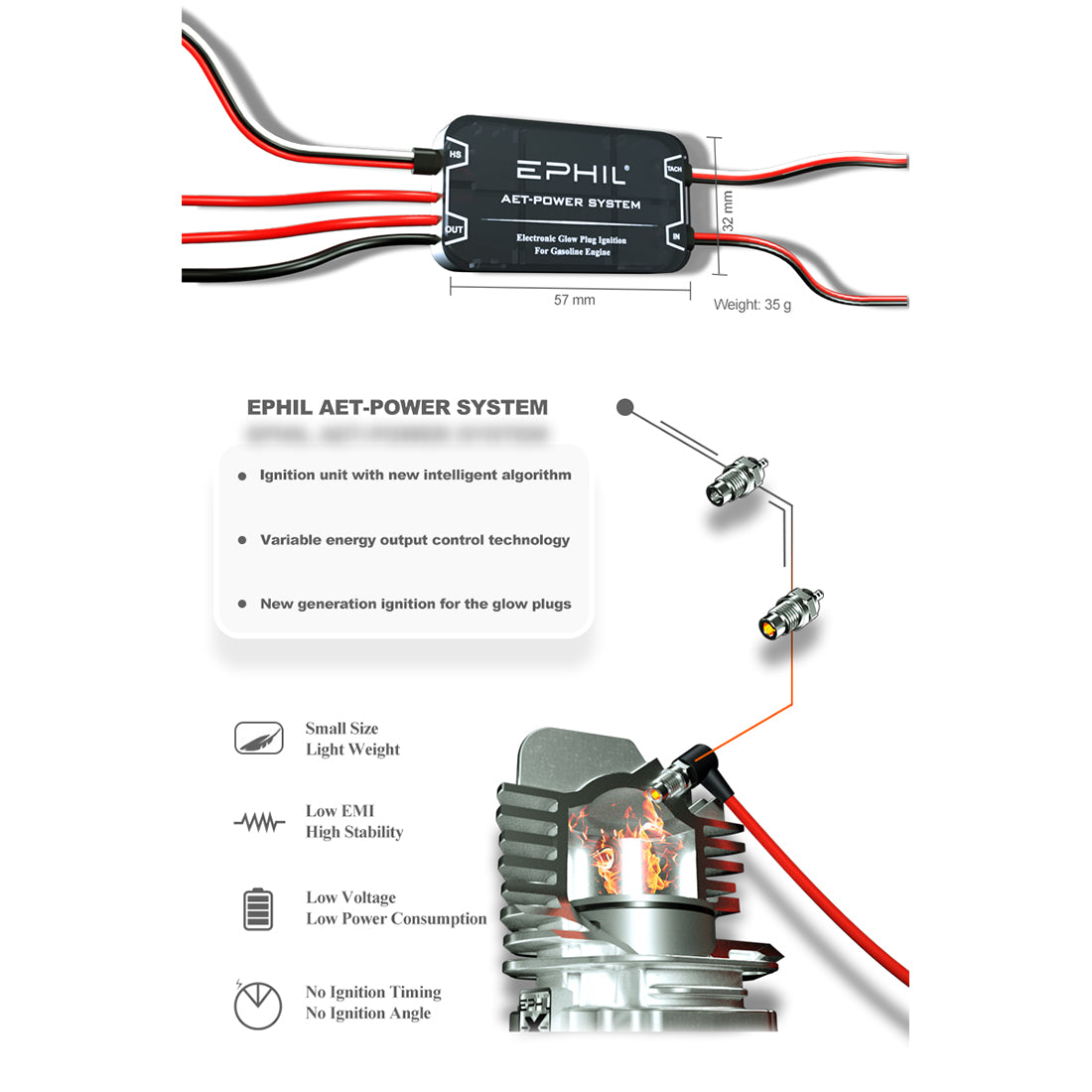

Weight of CDI(Ignition): 30g
Total Weight:2134g (4.7 lb)

Product Features:
1. Precision manufacturing, stable operation, excellent quality, strong power, easy maintenance, quick start.
2. Pro upgraded engine is equipped with electric start, with special ESC, so that your airplane can be started simply and quickly with one button. Countless tests and good reputation have proved its reliability.
3. The standard electric heat plug can show more stability in high temperature and high pressure cylinders. Tests show that its lifespan is substantially improved compared to ordinary spark plugs.
4. Standard equipped with a special exhaust pipe that can be connected to the smoke pulling system, you can install the smoke pulling system very conveniently and make your airplane brilliant like a shooting star in the sky.
5. Our engine is suitable for application in all kinds of fixed-wing airplane models, giving your airplane a strong power performance, good working performance will not let you down.

Suitable age: 16+

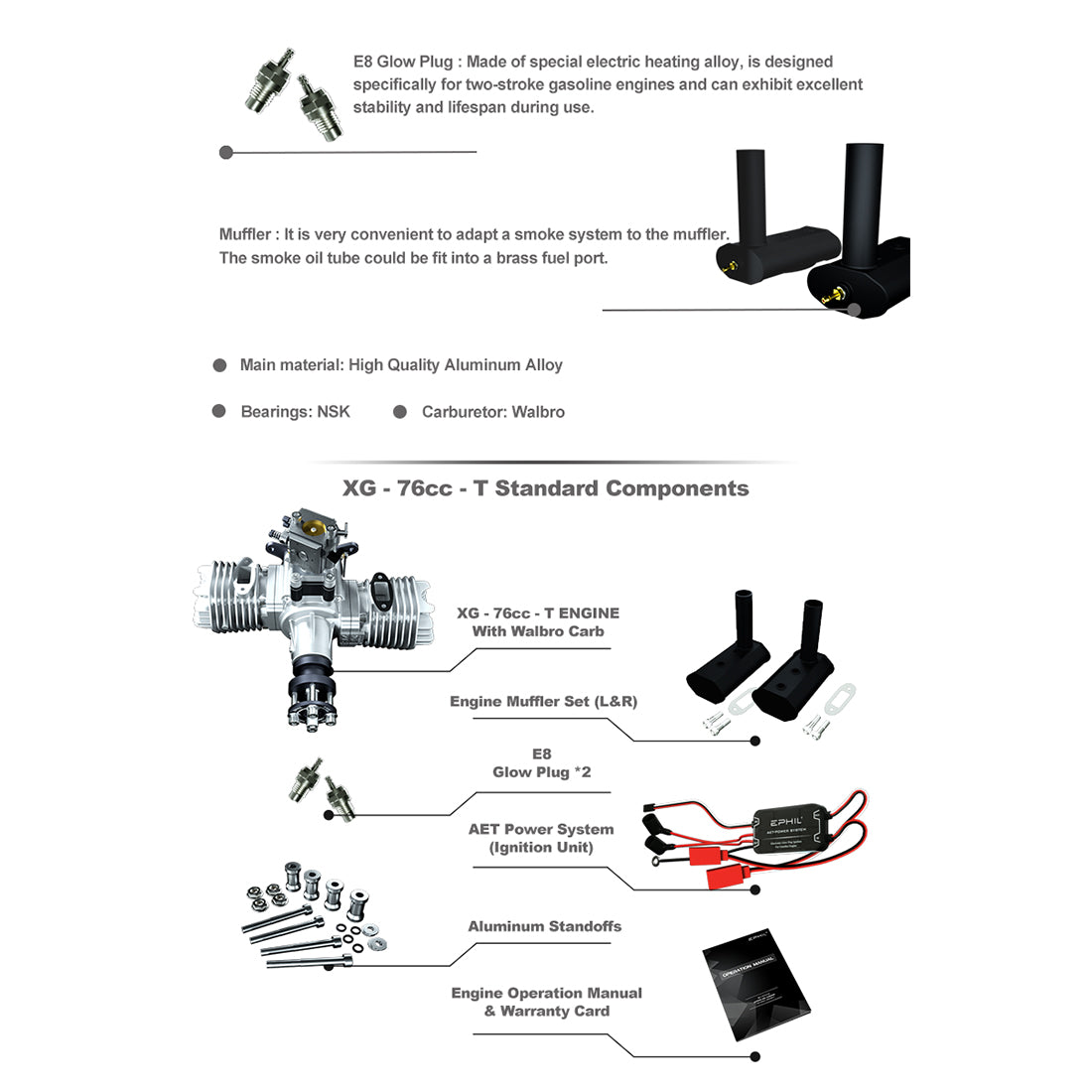

Packing list:
Engine*1
Carburetor*1
Exhaust pipe*1
Electric heat plug*2
Electronic ignition*1
Engine mount*1
Manual and warranty card*1
