Charging and replacing RC batteries can feel scary at first. Many new hobbyists worry about fires or damaging their RC helicopters or RC paragliders. You can do it safely and easily with the right steps.
This guide helps beginners learn how to charge LiPo batteries, replace them, and pick the best ones. Follow these tips to enjoy longer flights and avoid common mistakes.
What Types of RC Batteries?
Most RC aircraft today use one of three battery types. Knowing which one you have is the first safety step.
LiPo Batteries
LiPo (Lithium Polymer) batteries are the most common choice for RC helicopters and paragliders. They are light, powerful, and deliver steady voltage until nearly empty.
Risk note: Most RC battery fires involve LiPo packs charged incorrectly. Safety procedures matter.
NiMH Batteries
Nickel-Metal Hydride (NiMH) batteries are a classic, user-friendly choice. They are more forgiving of charging mistakes and don't carry the same fire risk as LiPos if mishandled, making them a common starter battery.
They are easier for beginners but provide shorter flight times.
Lithium Ion (Li-ion)
Li-ion batteries are common in long-range drones or specialized RC equipment. They hold a lot of energy but usually cannot provide the massive "bursts" of power that a LiPo can.
How Do You Identify the Right RC Battery for Your Model?
Using the wrong battery can damage your model or be unsafe. Here’s how to match the battery to your model's motor and electronic speed controller (ESC).
Check Voltage and Cell Count
In the RC world, voltage is listed as "S" (cells).
1S = 3.7V
2S = 7.4V
3S = 11.1V Most RC helicopter batteries are 3S or 4S.
Using a 4S battery on a motor rated only for 3S can quickly damage both the ESC and the motor.
Check Capacity (mAh)
The capacity, measured in milliamp-hours (mAh), is like your battery's fuel tank. A higher mAh rating means longer flight times.
However, a larger capacity also means a heavier battery. You must ensure the battery physically fits in your model's compartment and doesn't exceed its recommended weight, which affects balance and performance.
Check Connector Type
Connectors vary: XT60 (common for helicopters), Deans, EC3, or Traxxas. Mismatch requires adapters—but matching avoids loose connections and sparks.
Using an incompatible connector or forcing a connection can cause a short circuit.
At Razordon, our RC helicopter batteries match popular models perfectly. Visit our collection for compatible options.
Which RC Battery Charger Should Beginners Choose?
A proper charger is your most important safety tool. It's not just about plugging in; it's about controlled, balanced charging.
USB Chargers
Simple USB chargers work for small 1S-2S batteries. They are slow and lack critical safety features like balancing individual cells.
Balance Chargers
Balance chargers monitor each cell individually. They prevent overcharging one cell and catching fire.—a top safety must for LiPo.
Important Charger Features
When choosing a charger, look for these key features:
- LiPo balance mode
- Adjustable charge current
- Cell count detection
- Storage mode
How Do You Charge RC Batteries Safely Step by Step?
Follow this sequence every time to ensure a safe and effective charge cycle.

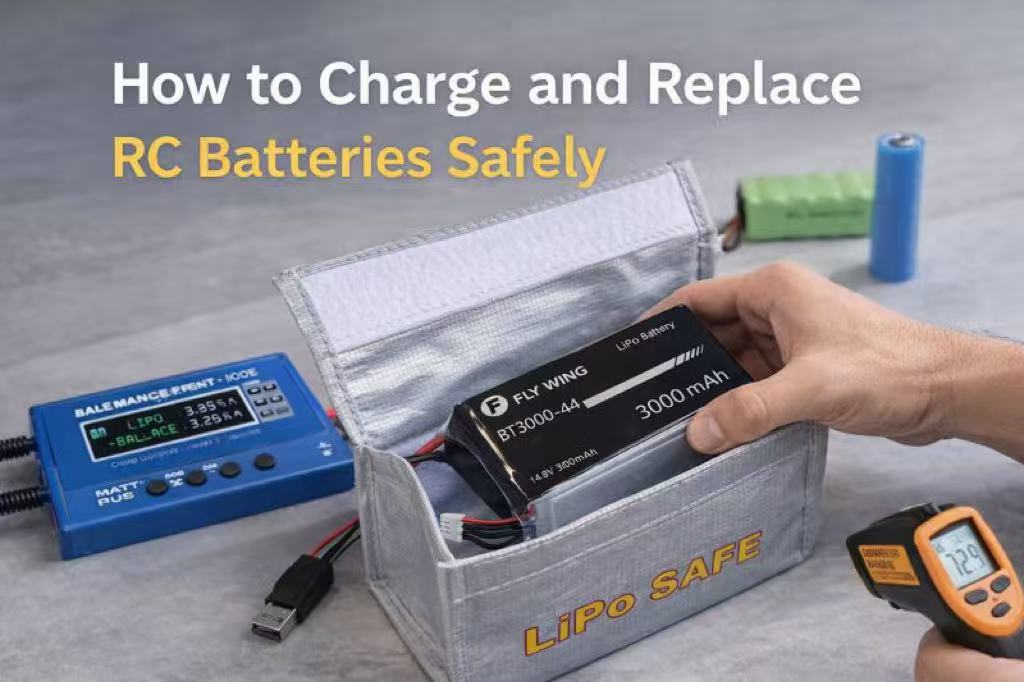

1. Prepare a Safe Charging Area
Always charge on a non-flammable surface like stone, tile, or metal. Never charge a carpet, a bed, or inside a model. Place the battery inside a dedicated LiPo safety bag during charging. This bag is designed to contain a potential fire.
2. Set the Correct Charge Rate
The golden rule is to charge at 1C for safety and battery longevity. This means your charge current in Amps (A) should equal your battery's capacity in Amp-hours (Ah).
For example, a 3000mAh (or 3.0Ah) battery should be charged at 3.0A. Charging faster generates excess heat and stress, reducing battery life.
3. Monitor During Charging
Stay nearby while the battery is charging. Never leave a charging RC battery unattended.
If the battery becomes very hot, swells, or smells unusual, stop charging immediately and place it in a fire-safe container.
When charging finishes, disconnect the battery and let it cool to room temperature before use.
If you won’t use it right away, check the remaining charge and store the battery at the proper storage level for its type.
How Do You Replace an RC Battery Correctly?
Before Removing the Battery
First, ensure the model is powered off. Unplug the battery from the model's electronic speed controller (ESC). If the battery is secured with a strap or velcro, carefully undo it. Avoid pulling on the wires; gently lift the battery out from its compartment.
Installing the New Battery
Place the new battery in the compartment, ensuring the connector is accessible. Secure it firmly with the provided strap or velcro to prevent it from shifting during flight, which can affect the center of gravity and cause a crash.
Then, connect the battery to the ESC, ensuring a secure fit.
Post-Replacement Check
Before flying, perform a basic systems check. Power on the model and check that all controls (like servos and motor) respond correctly without any error beeps from the ESC.
This confirms that the new battery is delivering stable power before takeoff.
When Should You Replace an RC Battery?
Physical Damage Signs
Replace the battery immediately if you see:
- Significant puffing or swelling
- Cracked or punctured casing
- Burnt or sweet chemical smell
- leaking fluid or damaged/bent connectors
Performance Warning Signs
- Significant drop in flight time
- Struggling to lift off
- Excessive heat under normal load
Most LiPo batteries last 150–300 charge cycles with proper care.
How Should RC Batteries Be Stored and Transported?
Proper Storage Voltage
Never store a LiPo fully charged or fully depleted. If you aren't flying within 48 hours, use your charger's "Storage Mode" to bring the cells to 3.80V–3.85V.
Full charge stored long-term degrades cells faster.
Transport Safety
When transporting batteries, use individual non-conductive bags or cases to prevent terminals from touching and shorting.
For air travel, regulations are strict: batteries must typically be in carry-on luggage, terminals must be taped, and each battery must be in its own bag.
Common RC Battery Charging Problems (And Fixes)
Battery Won’t Charge
Problem: Charger shows "Connection Break" or no voltage.
Likely Cause & Fix: Loose or dirty connector. Unplug, clean the connectors with isopropyl alcohol, and reconnect firmly. Also, ensure you've selected the correct battery type and cell count on the charger.
Cells Won’t Balance
Problem: One cell voltage is consistently much lower/higher than the others.
Likely Cause & Fix: This indicates an aging or damaged battery. Try a low Amp (0.5A) balance charge. If the imbalance persists above 0.1V after charging, the battery pack fails and should be retired, as it is a safety risk.
Charger "Connection Break"
Inspect your balance lead and main plug for loose wires or dirt.
Conclusion
Mastering RC battery care is a core skill that helps you fly safer, extend battery life, and avoid common mistakes.
Once you understand voltage, capacity, and charging basics, choosing a compatible replacement becomes much easier. If you ever need to check battery options by model or specifications, you can review the available RC batteries here to confirm compatibility before your next flight.
