FLYWING H1 Pro Autopilot System, Independent Suspended IMU Expandable Duall GNSS Flight Control Module for H3/HR3 Swashplate Flybarless Helicopter

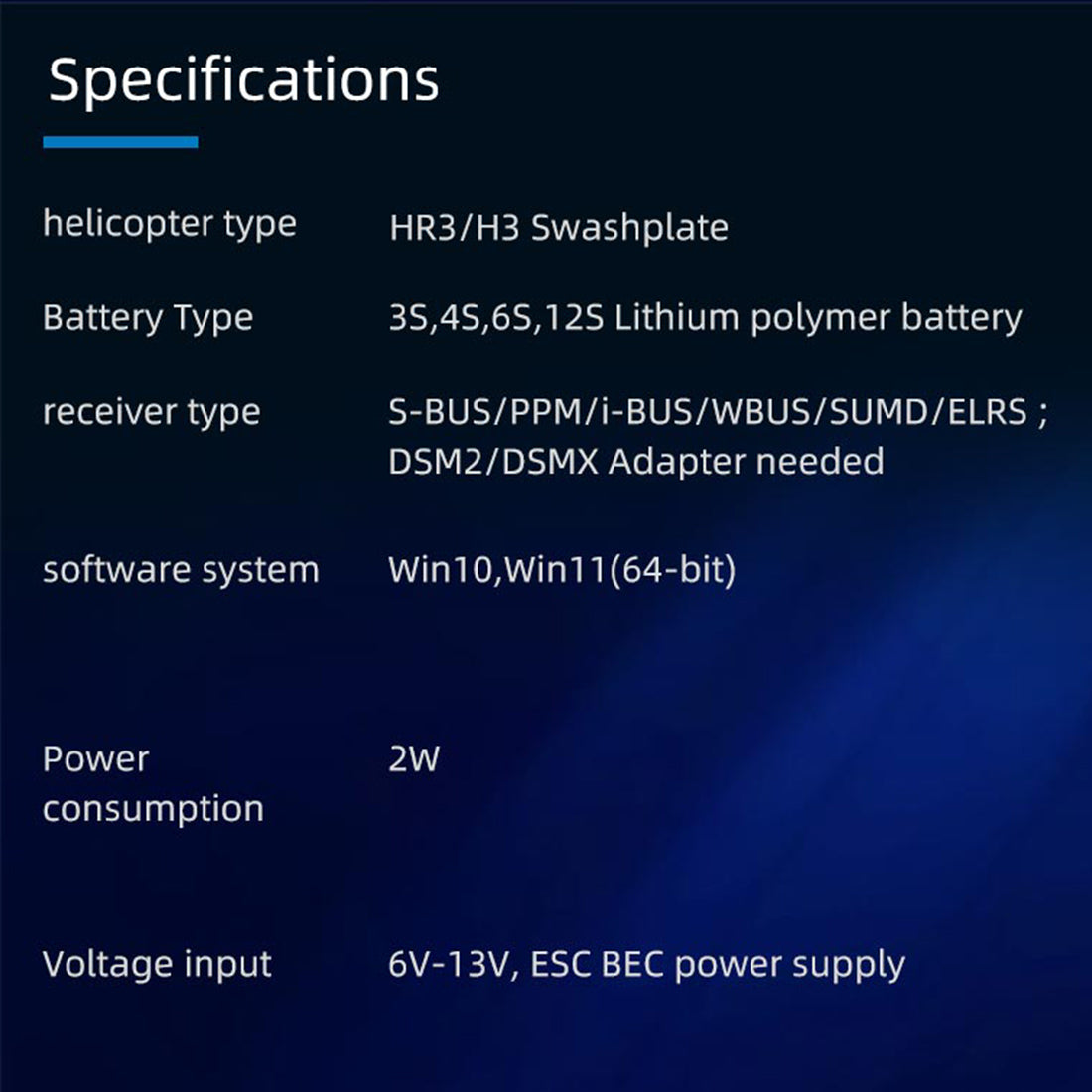

Product Specifications:

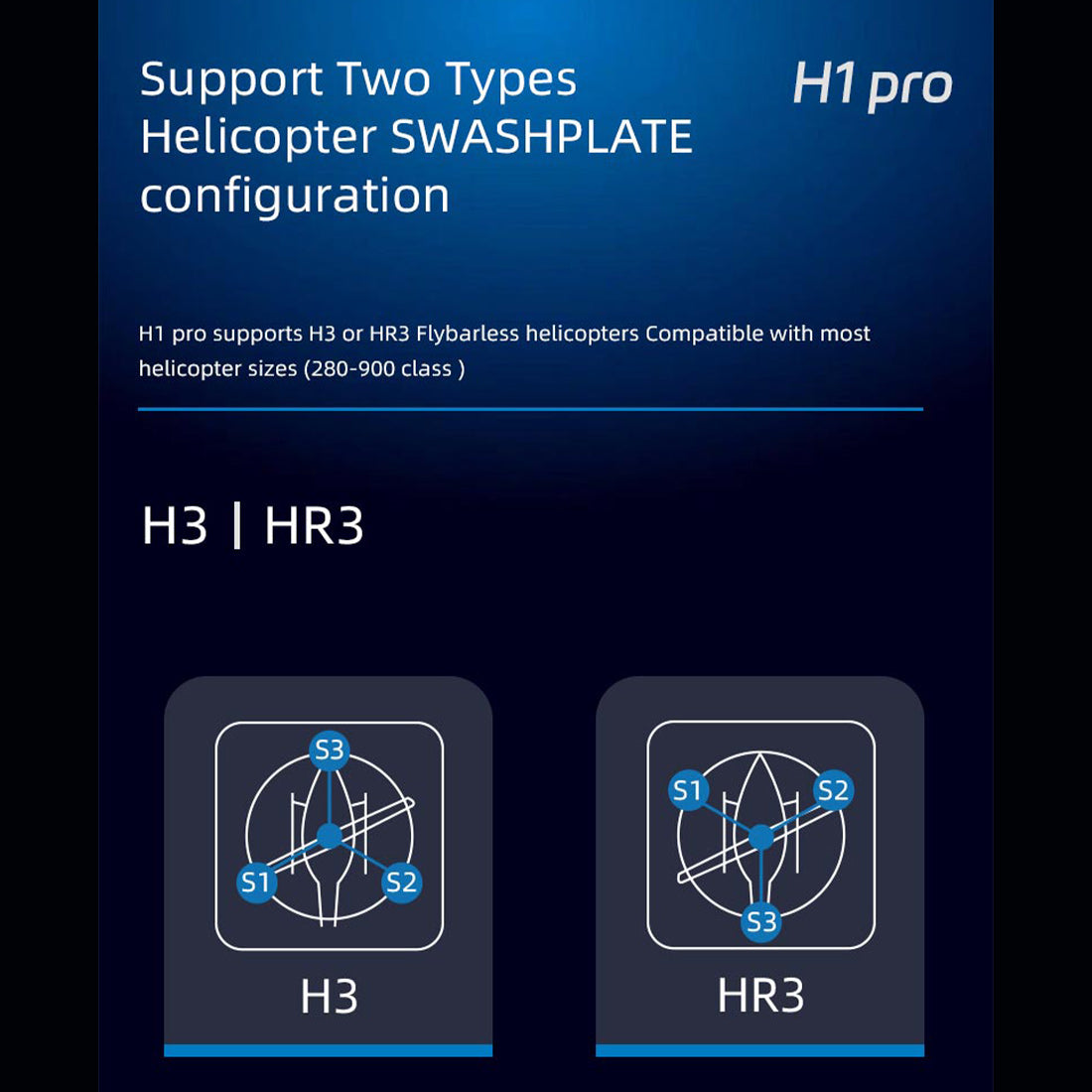

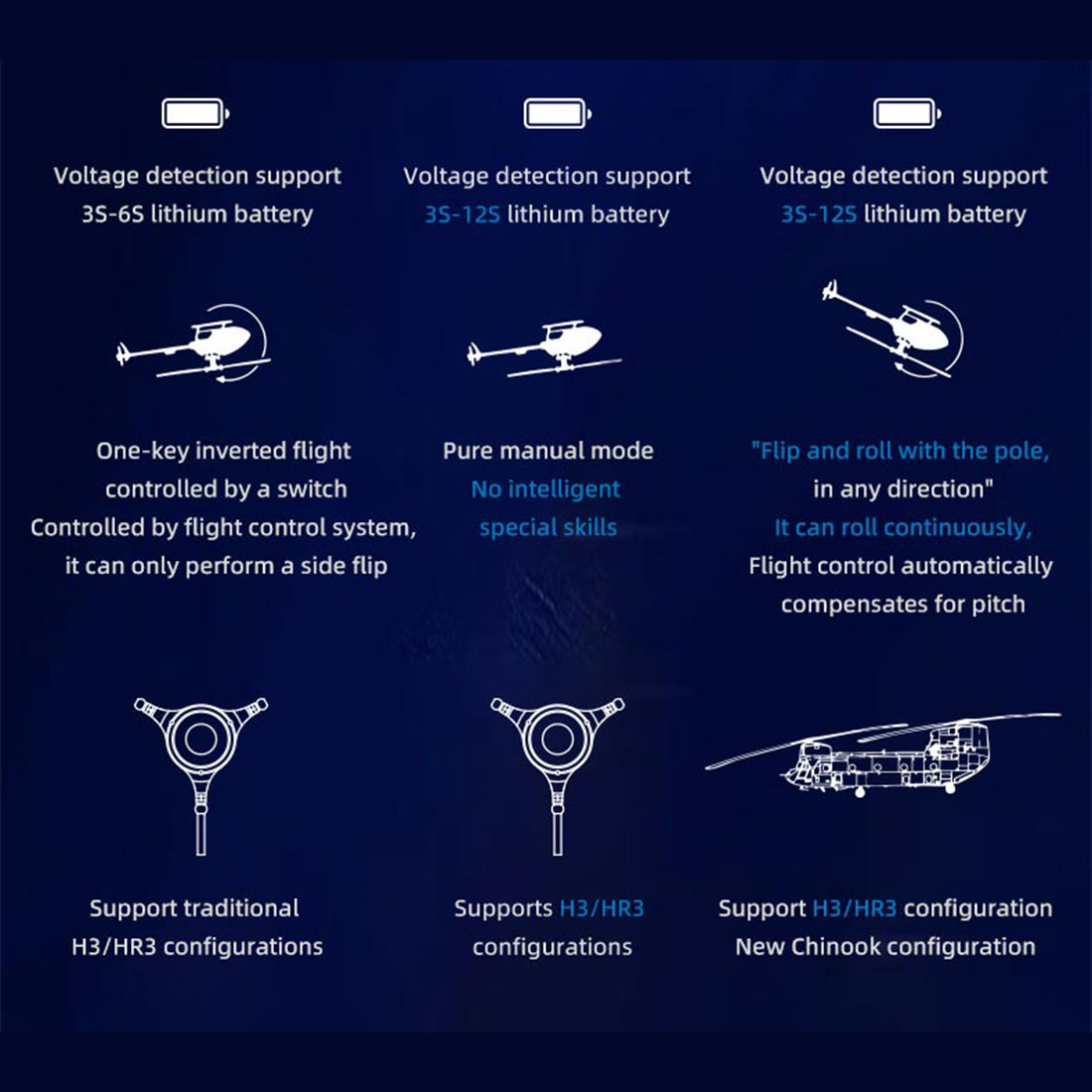

1. Compatible Helicopter Models: HR3/H3 without aileron swashplate

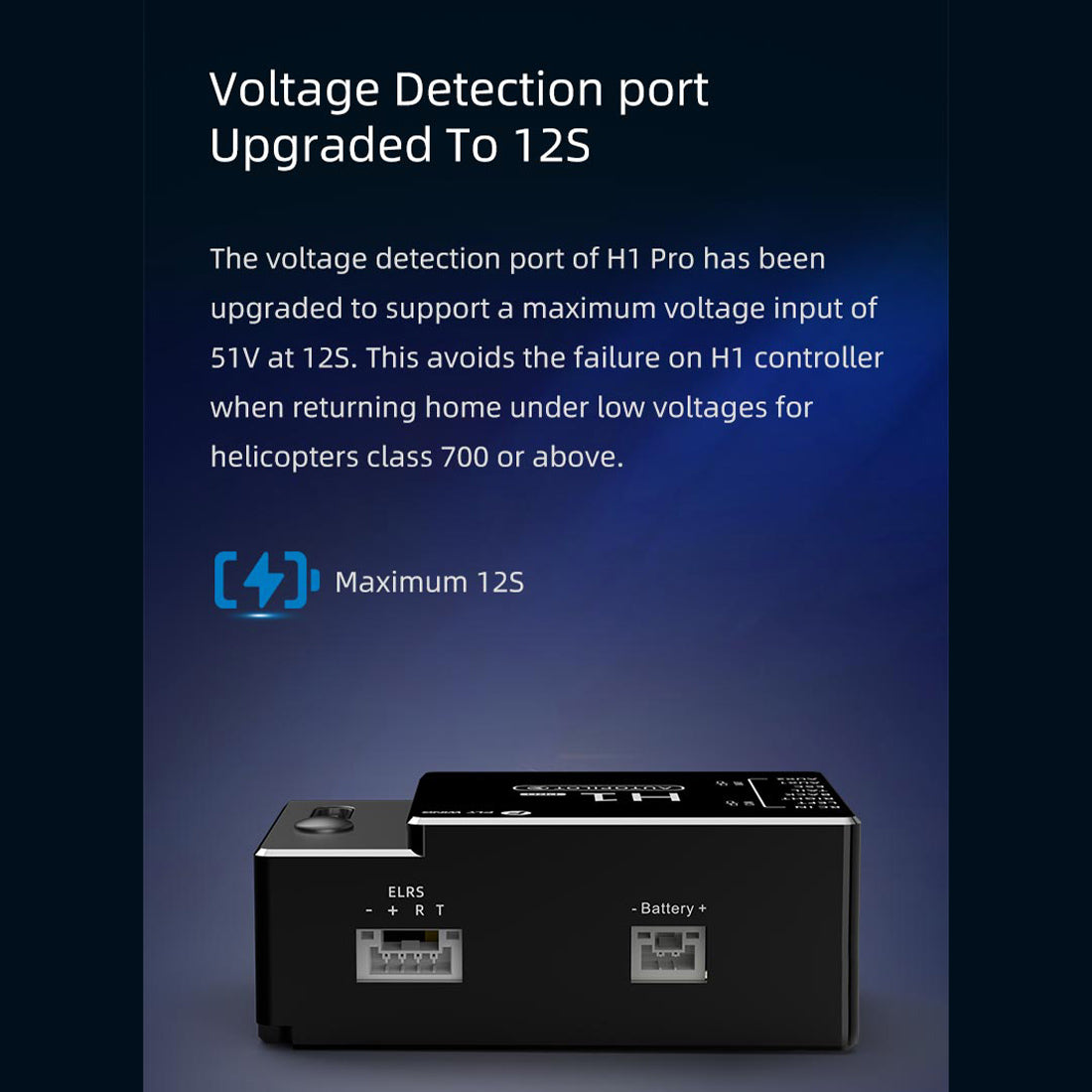

2. Battery Type: 3S, 4S, 6S, 12S LiPo batteries
3. Receiver Type: S-BUS / PPM / i-BUS / WBUS / SUMD / ELRS; DSM2/DSMX requires an adapter
4. Supported computer systems: Win10, Win11 (64-bit)
5. Rated power: 2W
6. Input voltage range: 6V-13V, powered by ESC BEC

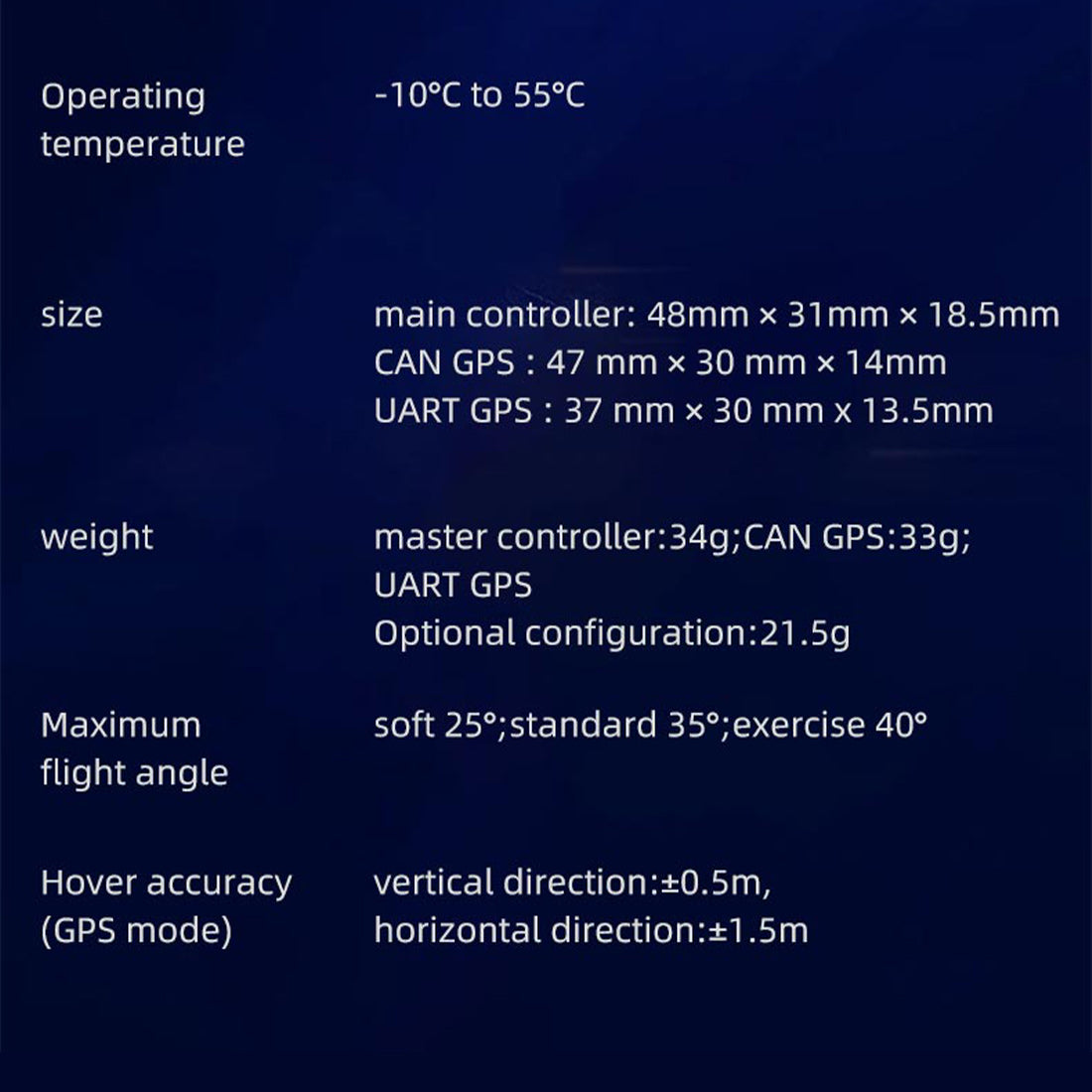

7. Operating temperature: -10°C to 55°C
8. Dimensions:

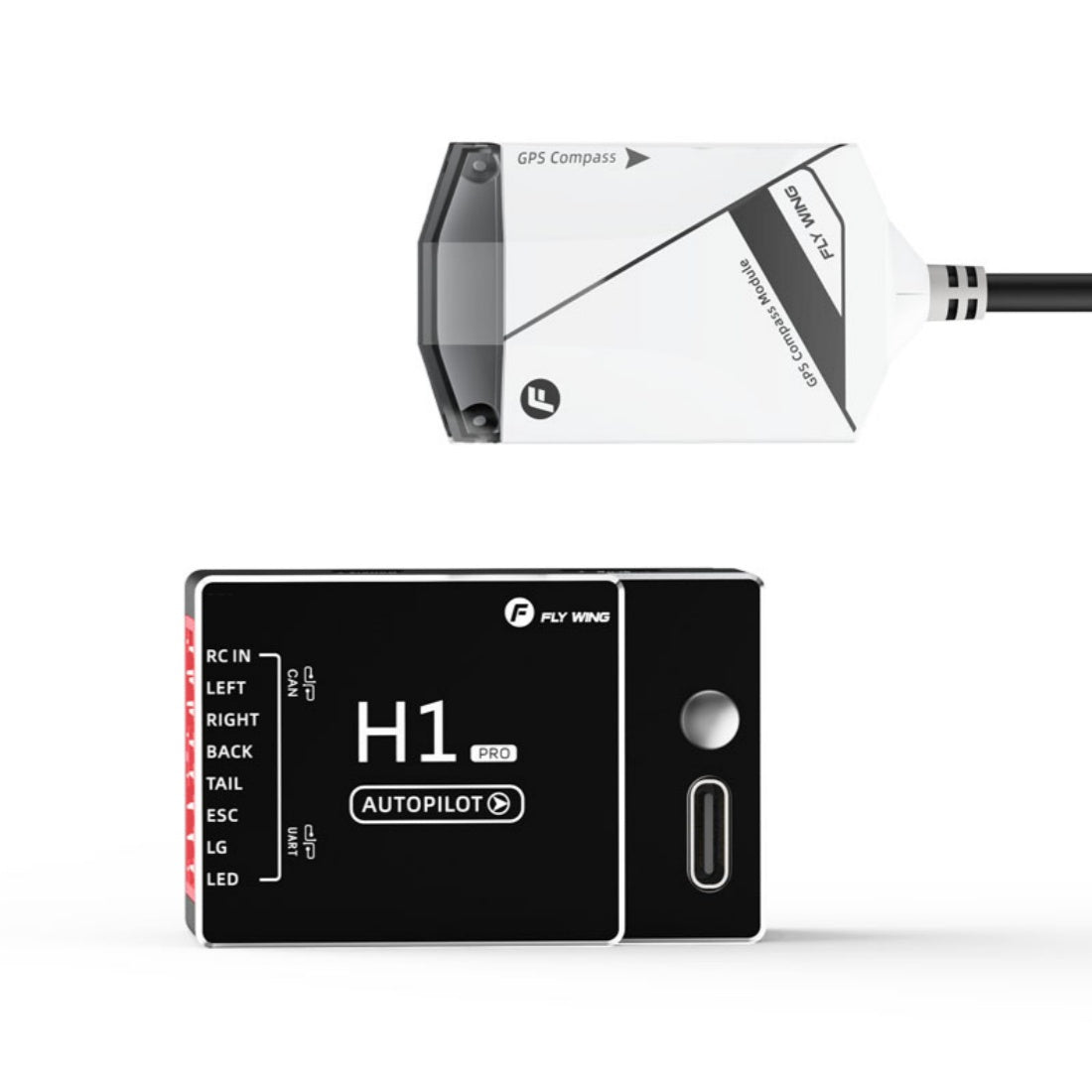

Main FCU: 48 mm × 31 mm × 18.5 mm
CAN GPS: 47 mm × 30 mm × 14 mm
UART GPS: 37 mm × 30 mm × 13.5 mm
9. Weight:
Main FCU: 34 g
CAN GPS: 33 g
UART GPS: 21.5 g
10. Maximum Flight Pitch Angle:
Smooth Mode: 25°
Standard Mode: 35°
Sport Mode: 40°
11. Hovering Accuracy (GPS Mode):
Vertical: ± 0.5 m
Horizontal: ± 1.5 m
12. Material: Plastic + Electronic Components

Product Features:

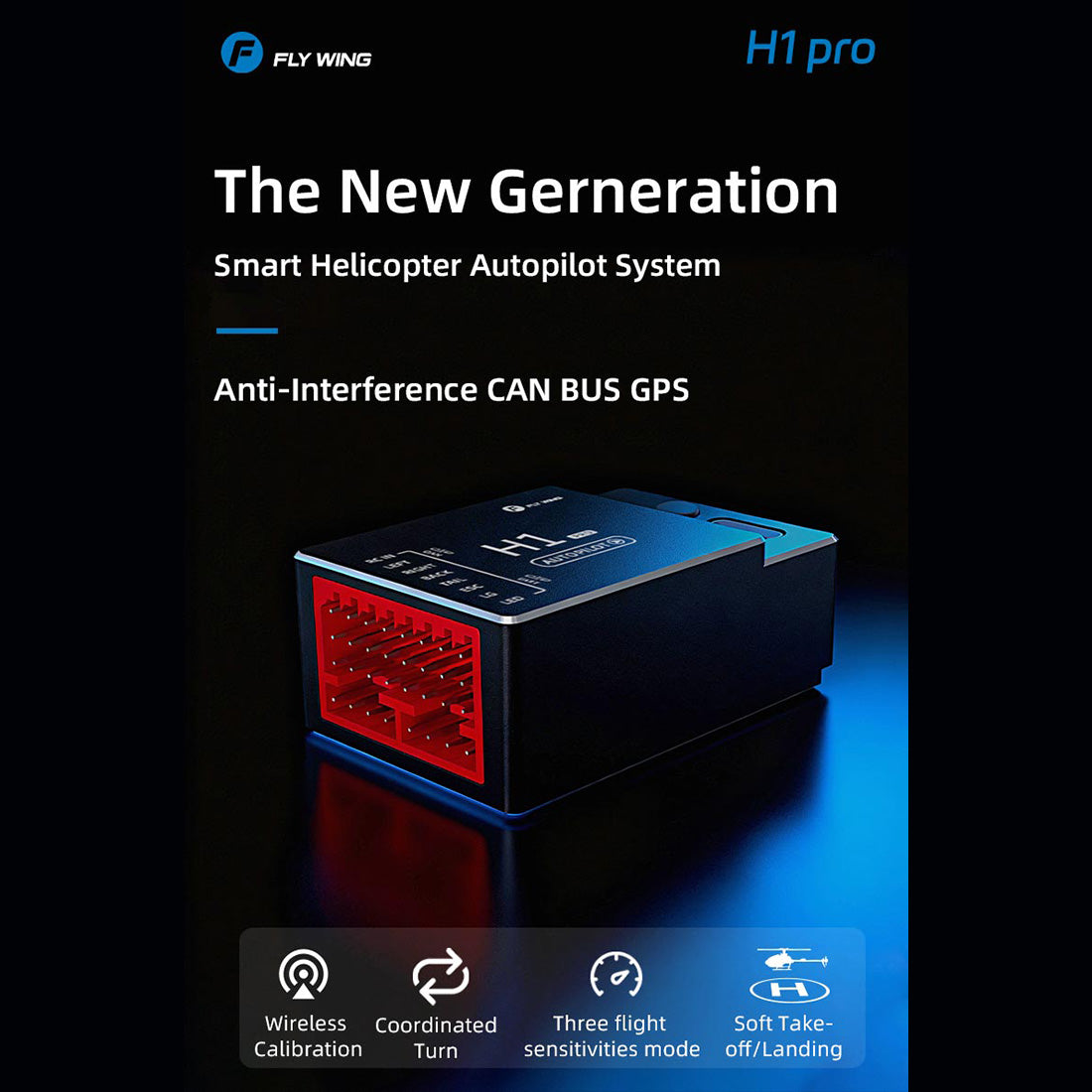

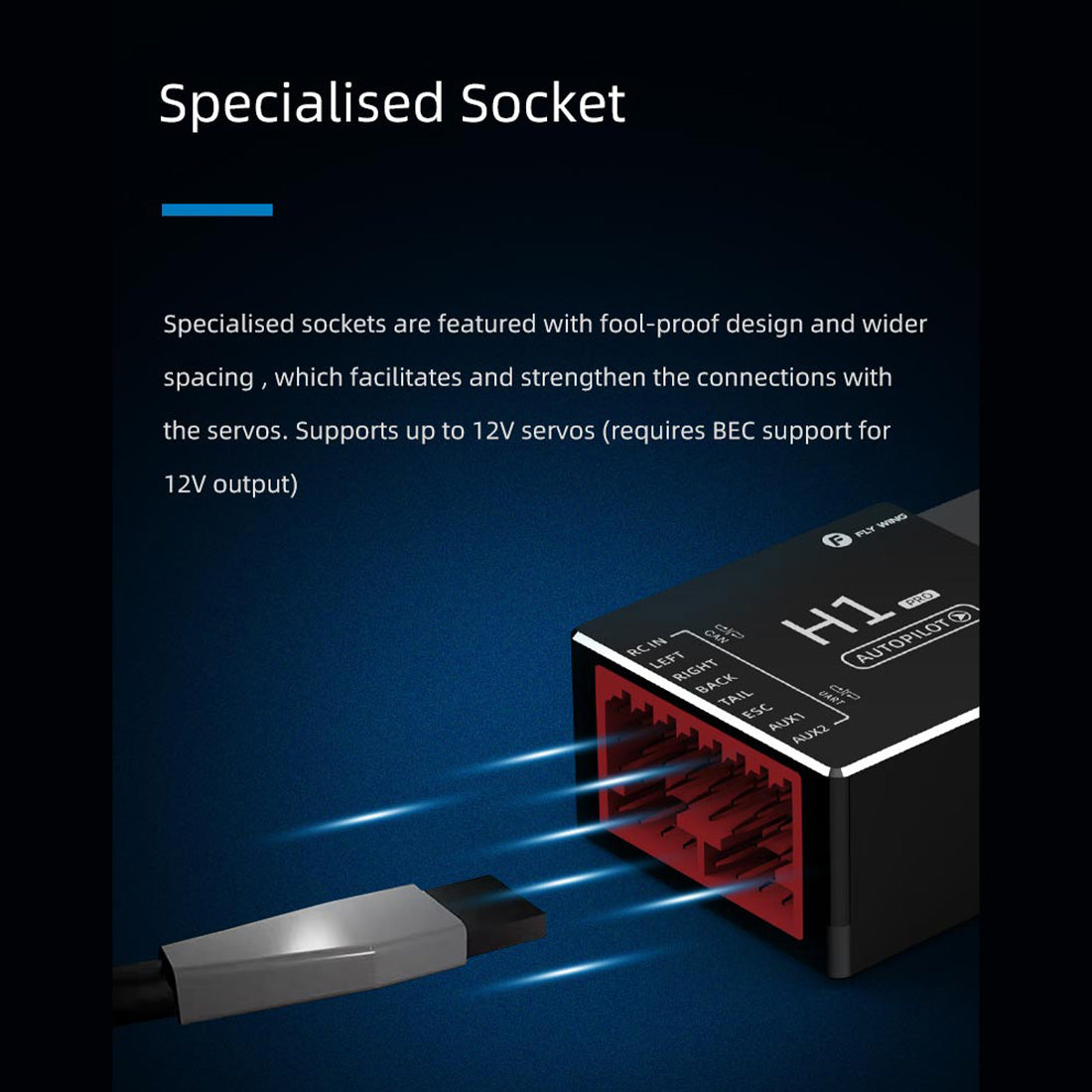

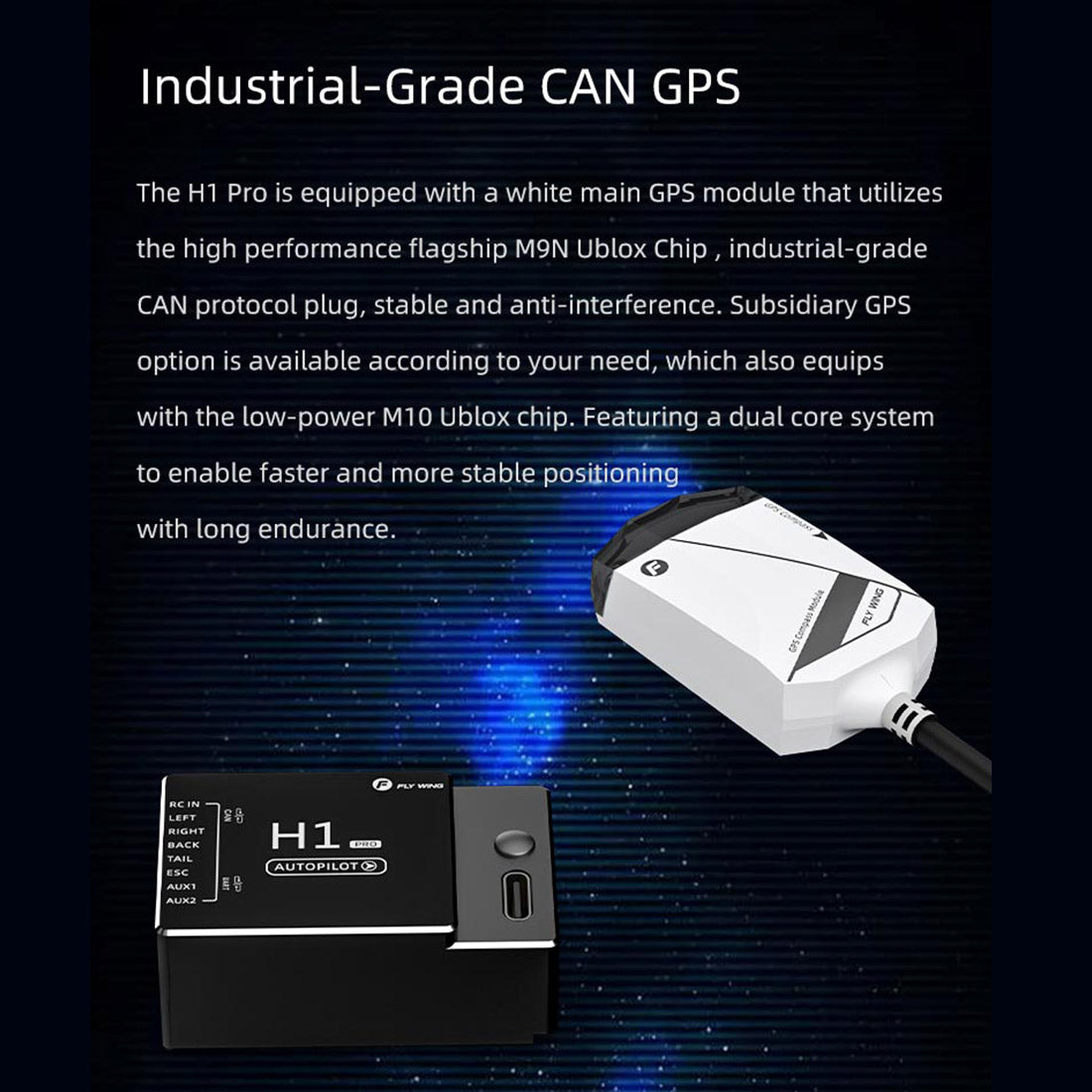

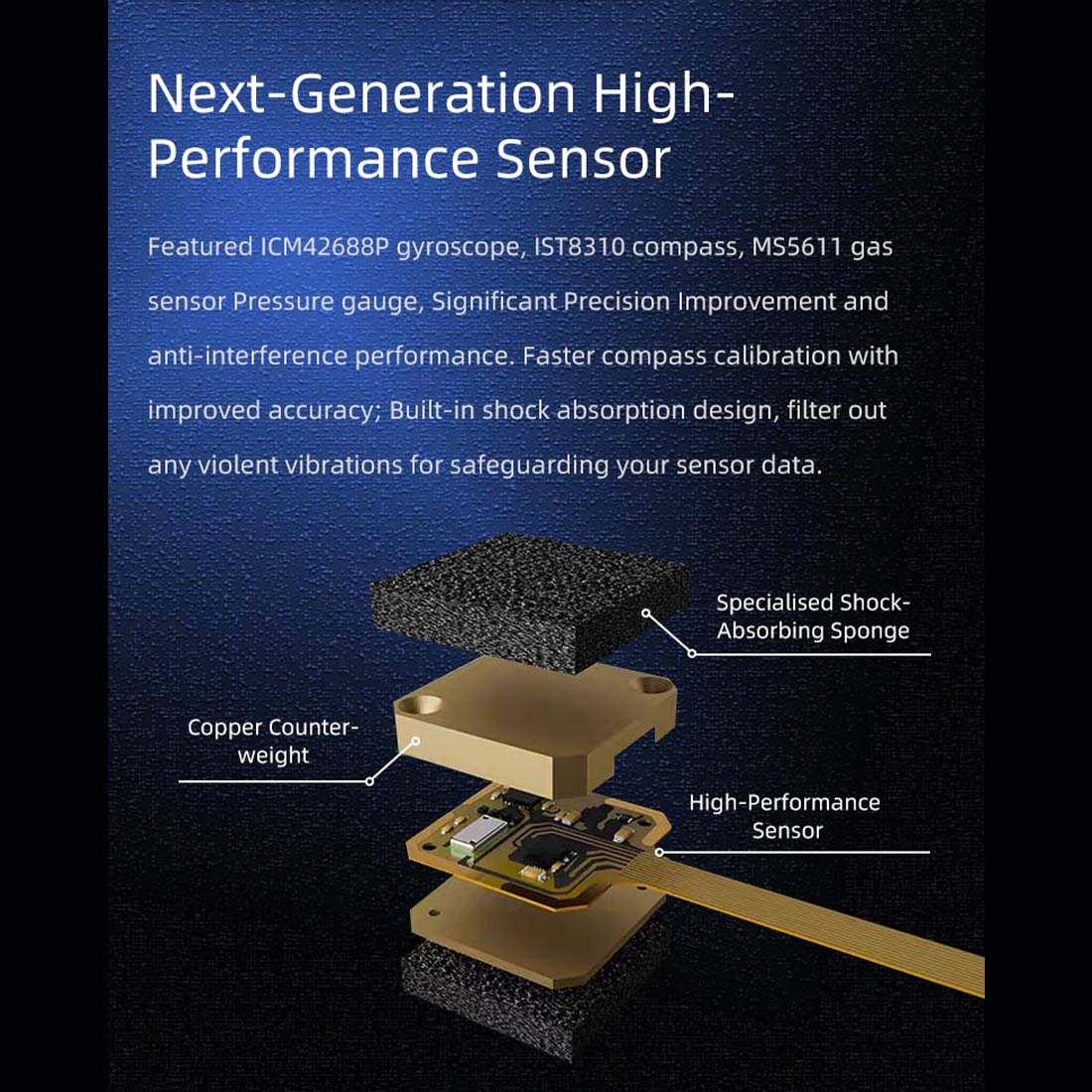

1. Fly Wing H1 Pro helicopter autopilot system flight controller, designed for performance pilots. Features dual redundant GPS for exceptional stability and unmatched capability. Incorporates a more user-friendly custom socket and an internal helicopter vibration damping system. Pure copper counterweight box effectively limits sensor inertia.
2. RPM filtering algorithm delivers enhanced flight performance.
3. Easily deploy the flight controller onto your helicopter using the H1 Pro Assistant software.
4. New IMU fusion algorithms significantly enhance flight stability and adaptability across different platforms.

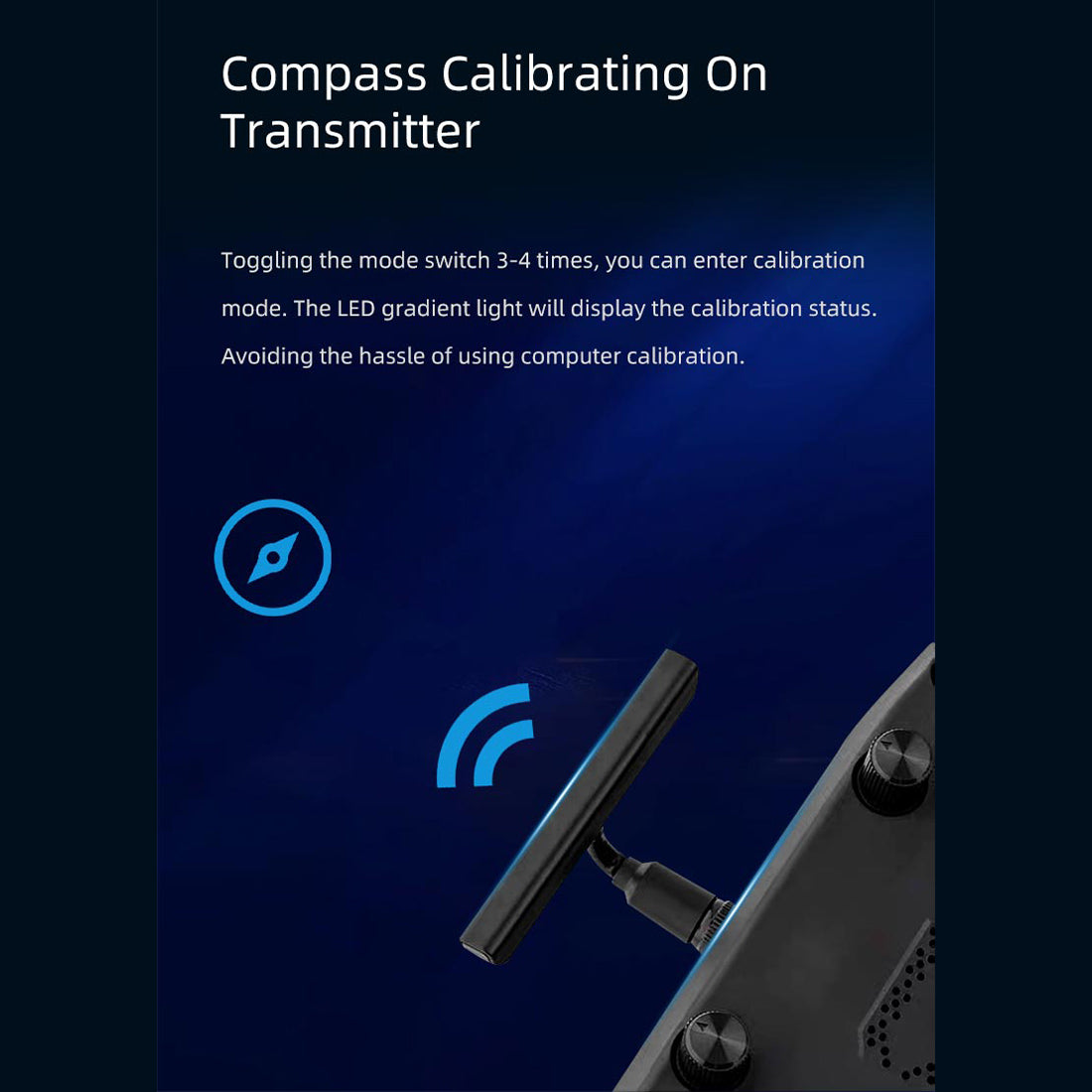

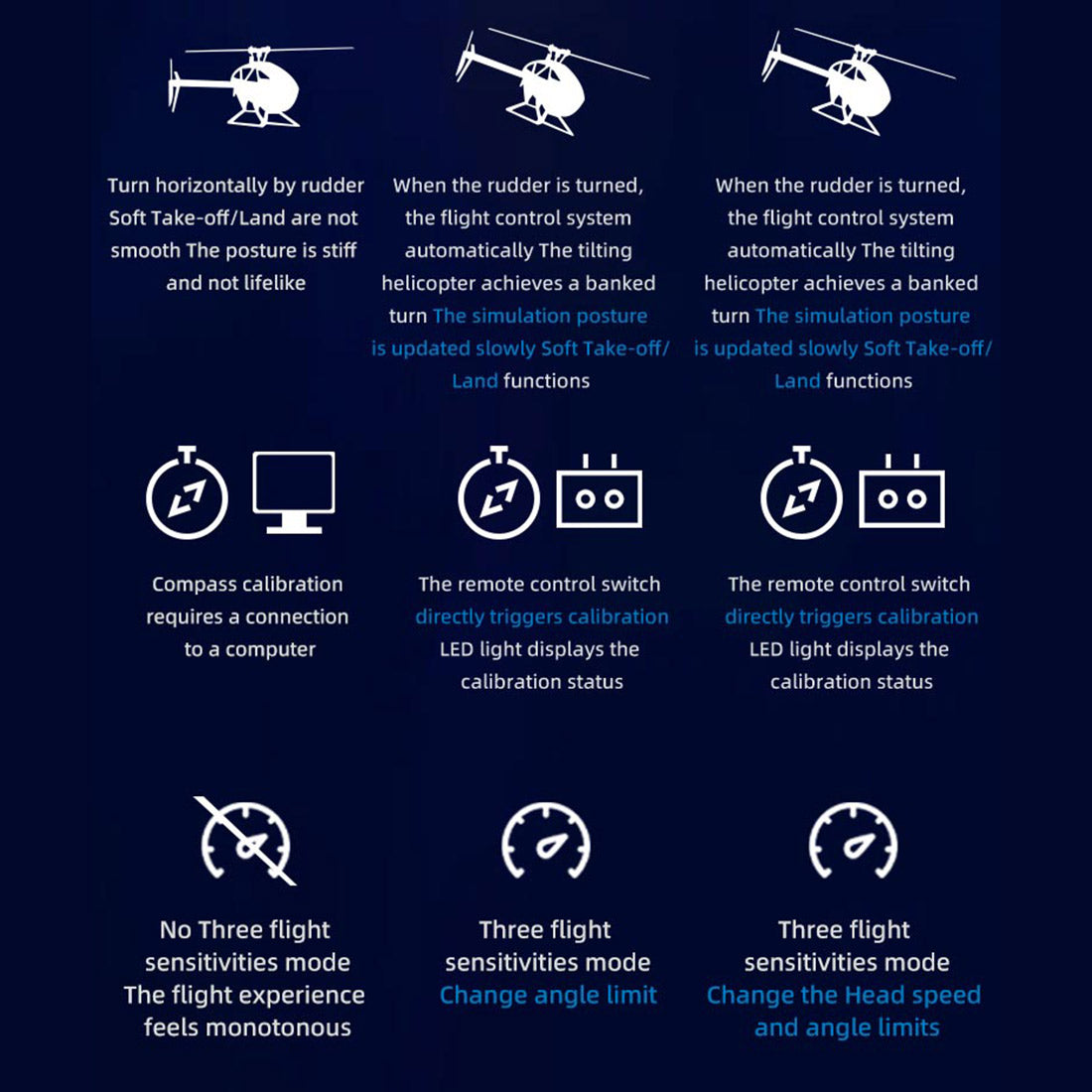

5. Transmitter triggers compass calibration and displays calibration status via LED indicators.
6. Supports full manual 3D flight, maximizing every aspect of your helicopter's performance and delivering the freedom of gyro-less control.
7. Coordinated turns require only ailerons and forward stick input to effortlessly execute tilted turning maneuvers.

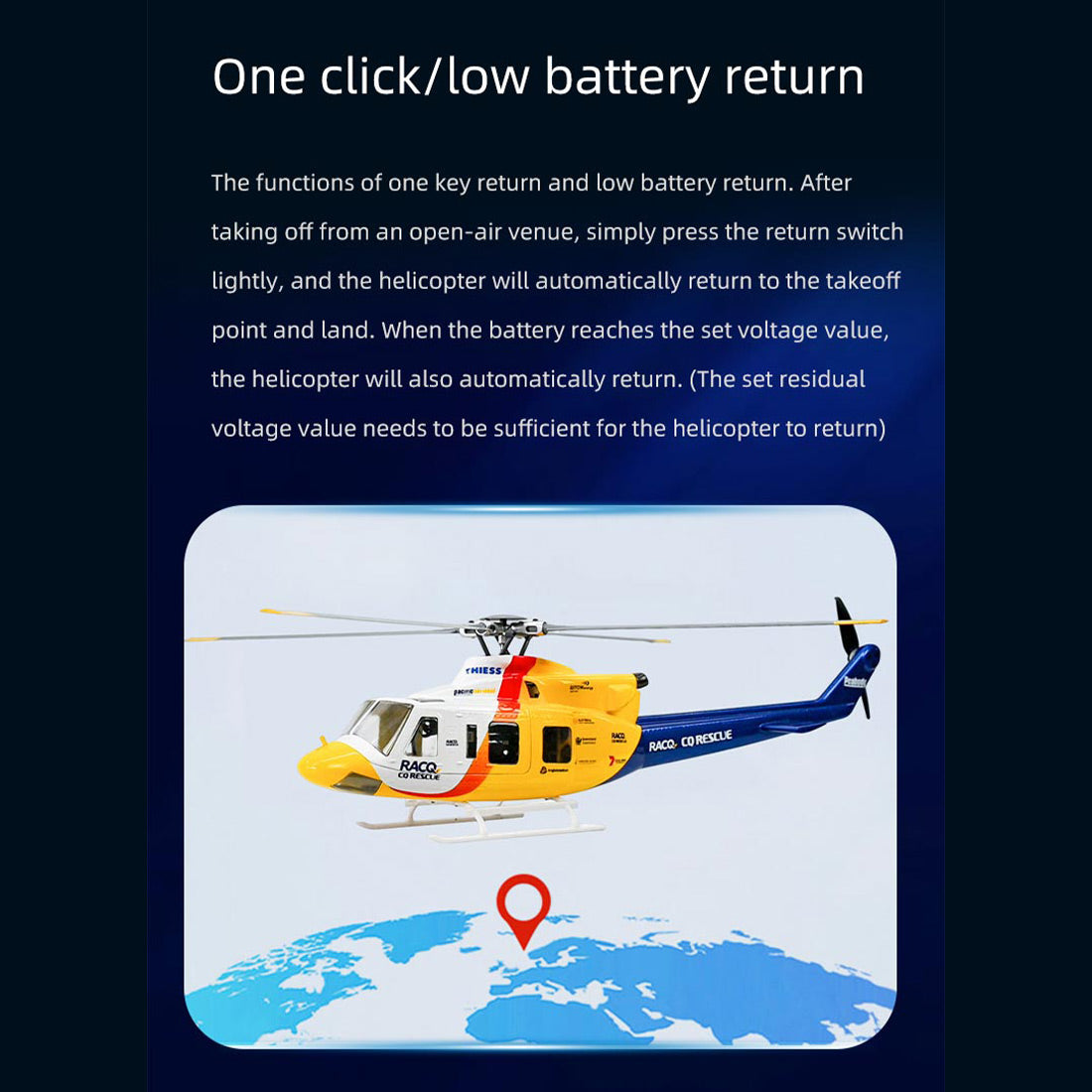

8. The H1 Pro flight control system features one-touch return-to-home and low-battery auto-return functions, enabling the helicopter to automatically ascend and return to its takeoff location.

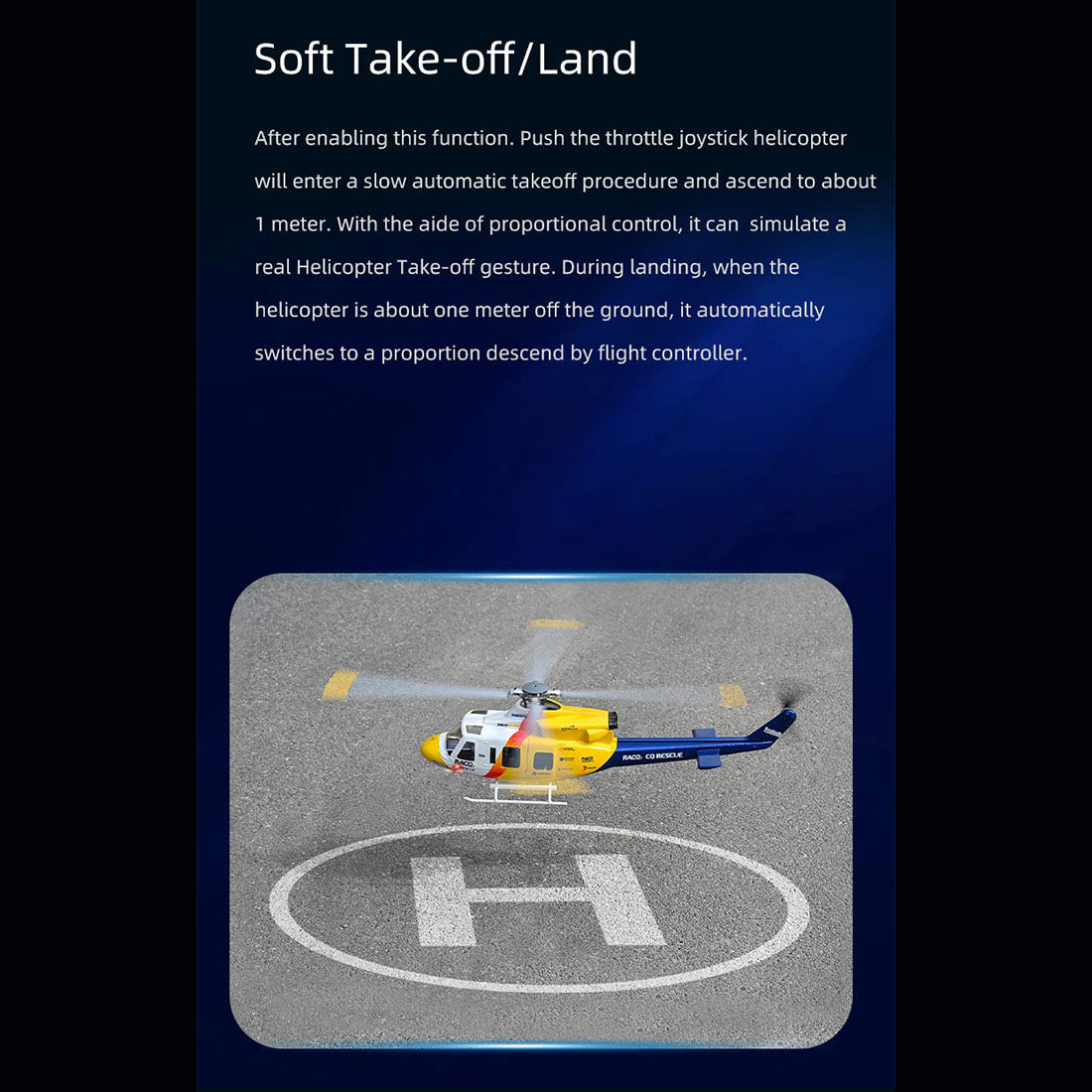

9. Slow takeoff and landing capabilities deliver more elegant and realistic flight dynamics.
10. The H1 Pro offers three flight sensitivity levels: Soft Mode for slowest speed and smallest angles, Medium Mode for balanced performance, and Fast Mode for maximum agility.
11. With robust flight control, broad compatibility, and intelligent features, the H1 Pro meets the demands of advanced helicopter enthusiasts.
12. Requires some technical expertise and hands-on capability.

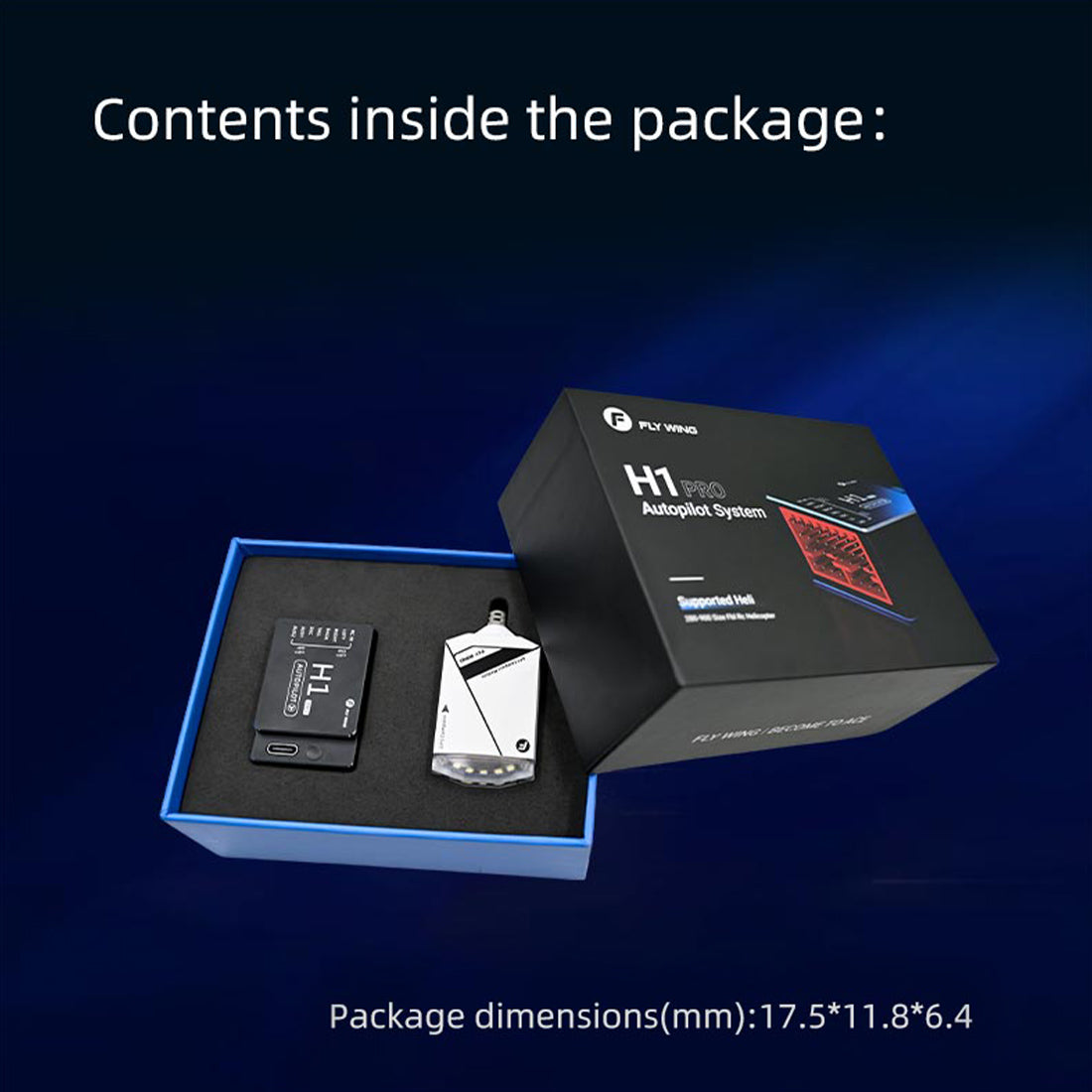

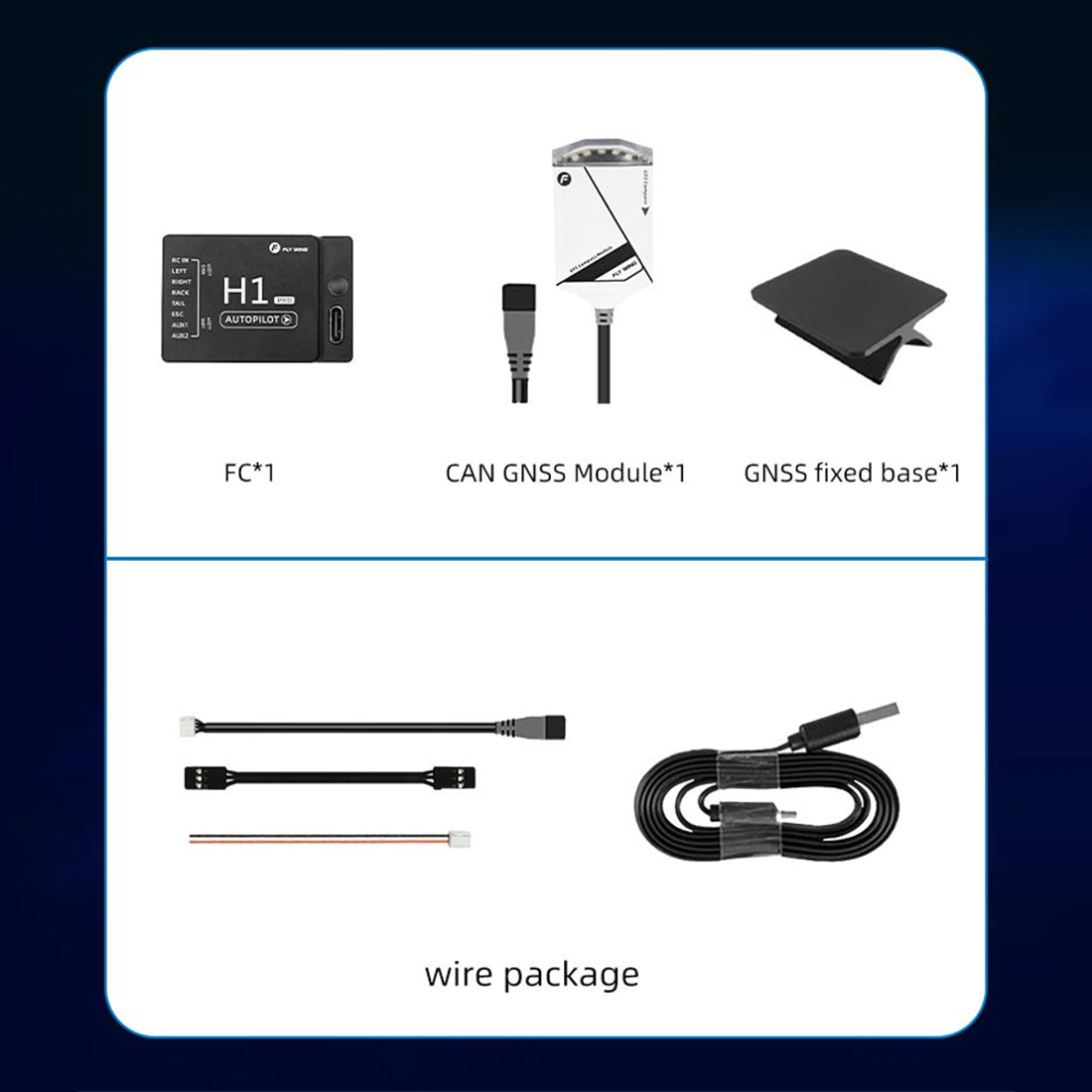

Package Contents: Flight Control Assembly*1

Age: 16+
