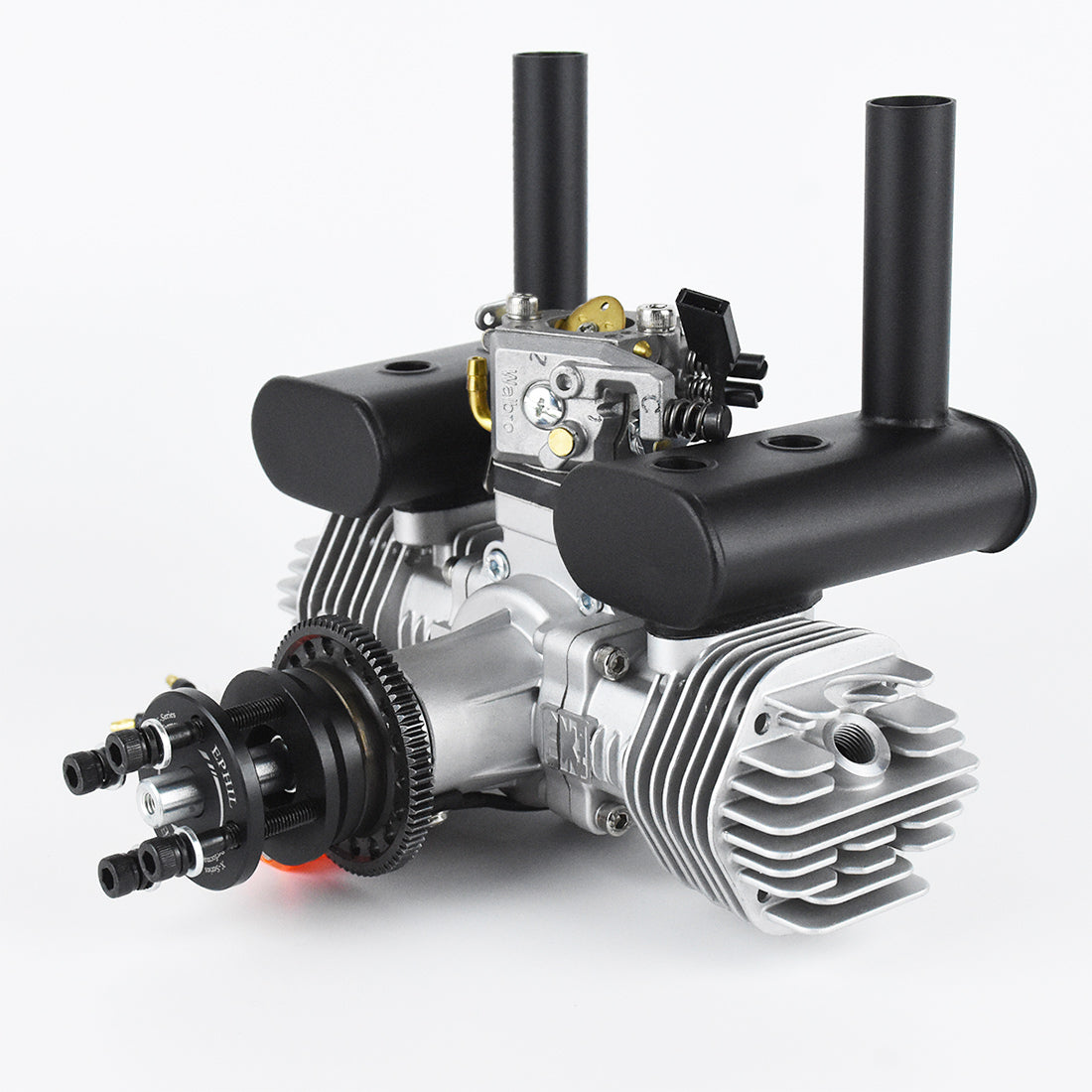

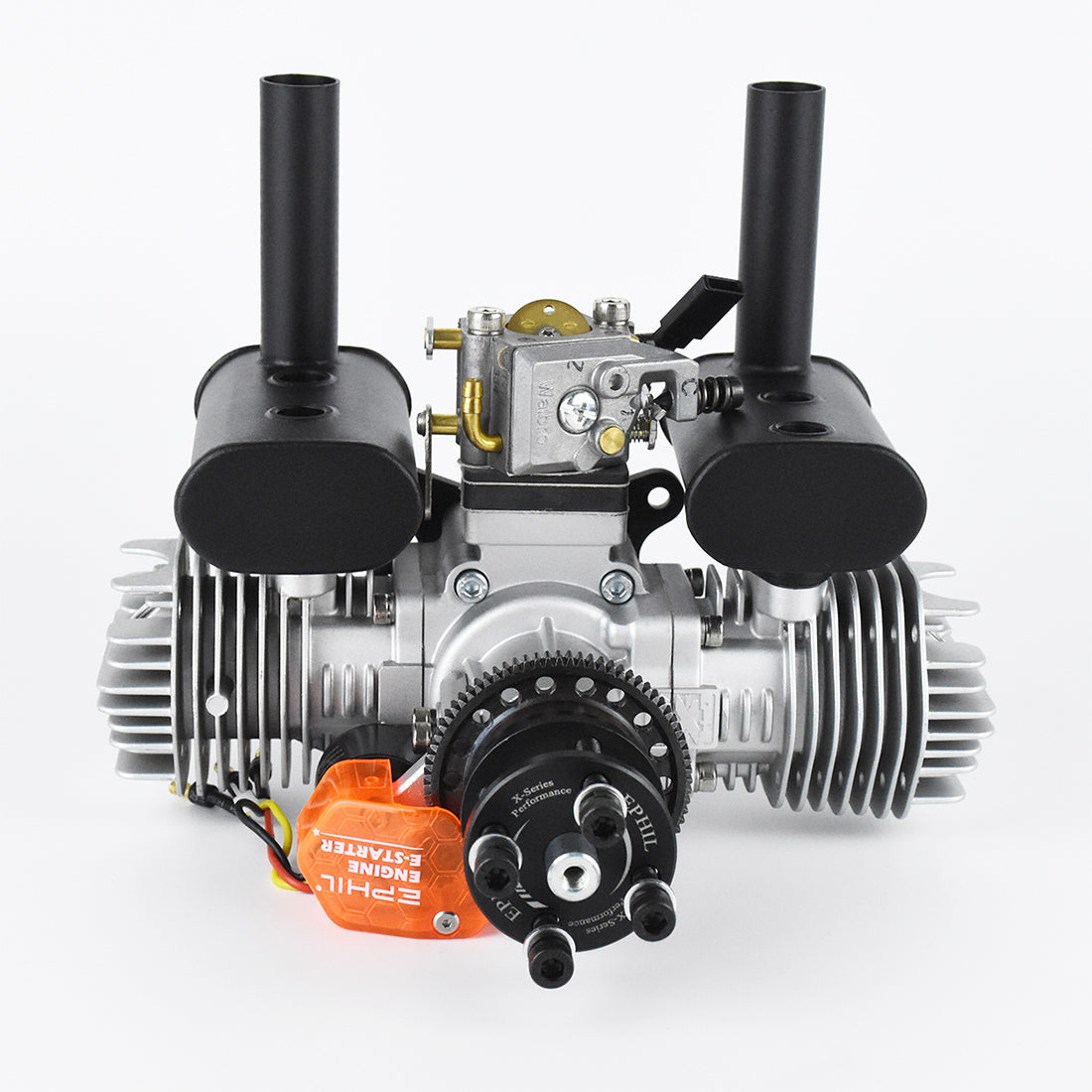

EPHIL X-40cc-T Pro Electric Starter Twin-cylinders Two-Stroke Horizontally Opposed Gasoline Engine Model for Fixed-Wing Aircraft Models

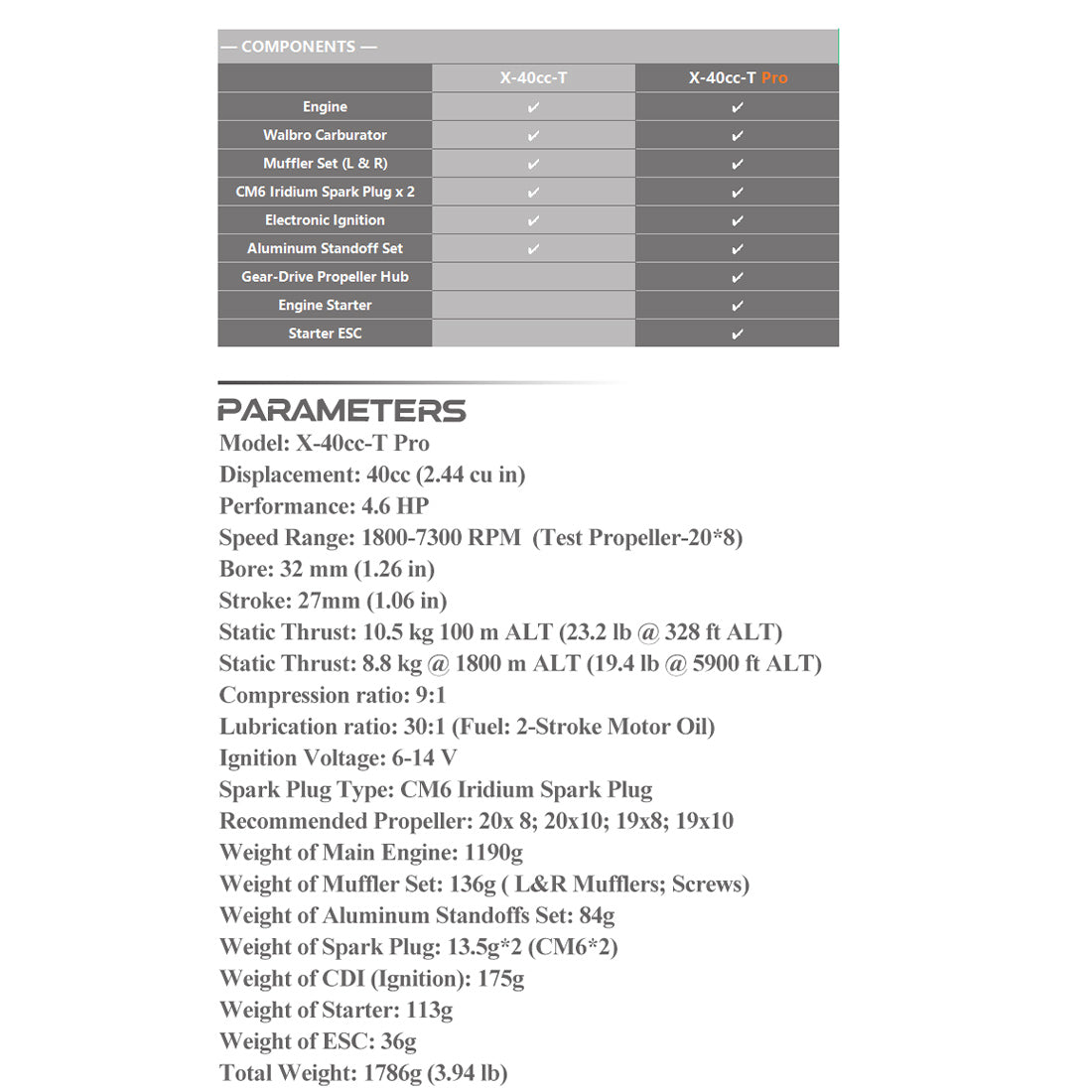

Product Parameters:
Material: Metal
Color: As Shown
Brand: EPHIL
Model-Model: X-40cc-T Pro
Displacement: 40cc(2.44 cu in)
Performance-Performance: 4.6 HP
Speed Range-Speed Range: 1800-8300 RPM (Test Paddle - 20 *8)
Bore: 32 mm (1.26 in)
Stroke: 27 mm (1.06 in)
Rally-Static Thrust: 11.5 kg @ 100 m ALT (25.4 lb @ 328 ft ALT)
Rally-Static Thrust: 9.0 kg @ 1800 m ALT (19.8 lb @ 5900 ft ALT) Compression. 5900 ft ALT)
Compression Ratio: 9:1
Lubrication Ratio: 30:1 (Gasoline:Lubricant)
Ignition Voltage: 6-14V
Spark Plug Type: CM6 Iridium
Recommended Propeller Specifications Recommended Propeller: 20x8; 20x10; 19x8; 19x10
Weight of Main Engine: 1190g
Weight of Exhaust Pipe-Weight of Muffler Set: 136g (L&R Exhaust; Screws)
Weight of Aluminum Standoffs Set: 136g (L&R Exhaust; Screws) Weight of Aluminum Standoffs Set: 84g
Spark Plug Weight-Weight of Spark Plug: 13.5g *2(CM6*2)
Ignition Weight-Weight of CDI(Ignition): 175g
Electric Starter Weight-Weight of Starter: 113g
ESC Weight-Weight of ESC: 36g Total Weight of ESC: 36g
Total Weight-Total Weight: 1786g (3.94 lb)

Product Features:
1.Precision manufacturing, stable operation, excellent quality, strong power, easy maintenance, quick start.

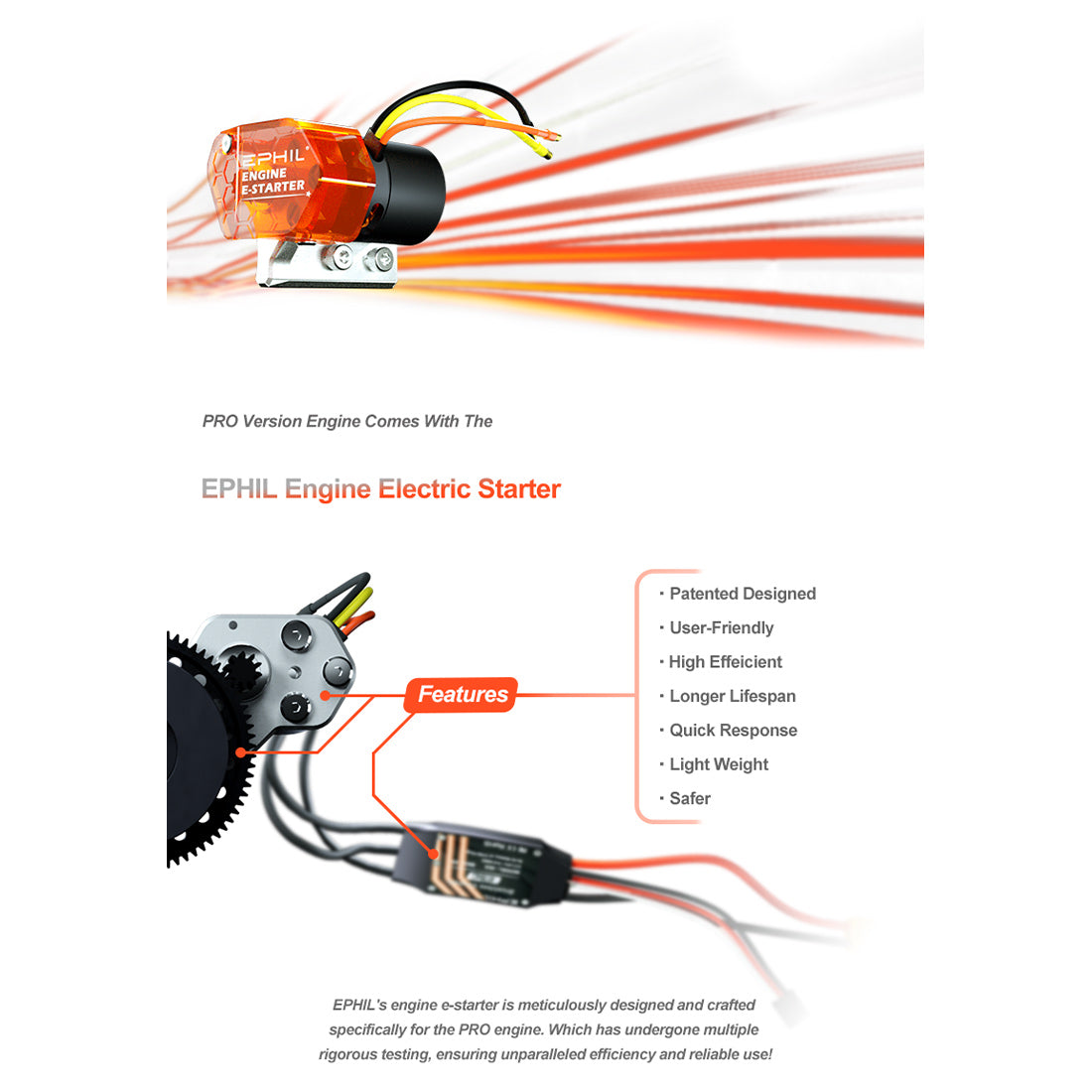

2.Pro upgraded engine is equipped with electric start, with special ESC, so that your airplane can be started simply and quickly with one button. Countless tests and good reputation have proved its reliability.
3. The standard CM6 iridium spark plug can show more stability in high temperature and high pressure cylinders. Tests show that its life expectancy is substantially increased compared to ordinary spark plugs.
4. Standard equipped with special exhaust pipe which can be connected to smoke pulling system, you can install smoke pulling system very conveniently and make your airplane brilliant in the sky like a shooting star.
5.Our engine is suitable for all kinds of fixed-wing airplane models, providing strong power performance for your airplane, and the good working performance will not let you down.

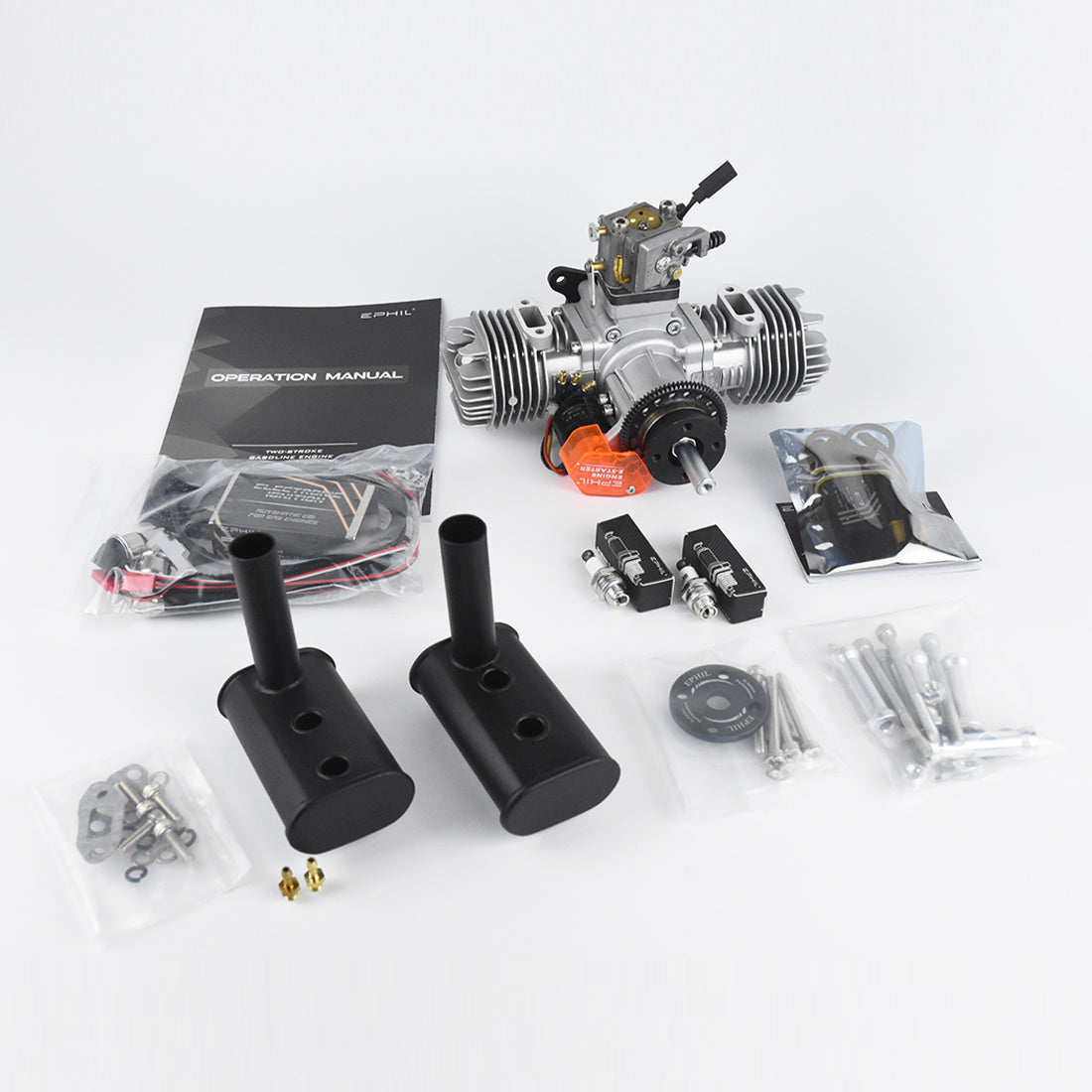

Packing List:
Engine*1
Exhaust*1
CM6 Iridium Spark Plugs*2
CDI Igniter*1
Engine Mount*1
Paddle Shaft Adapter*1
Gear-driven Paddle Shaft*1
Electric Starter*1
ESC ESC*1
Manual and Warranty Card*1

Suitable Age: 16+
