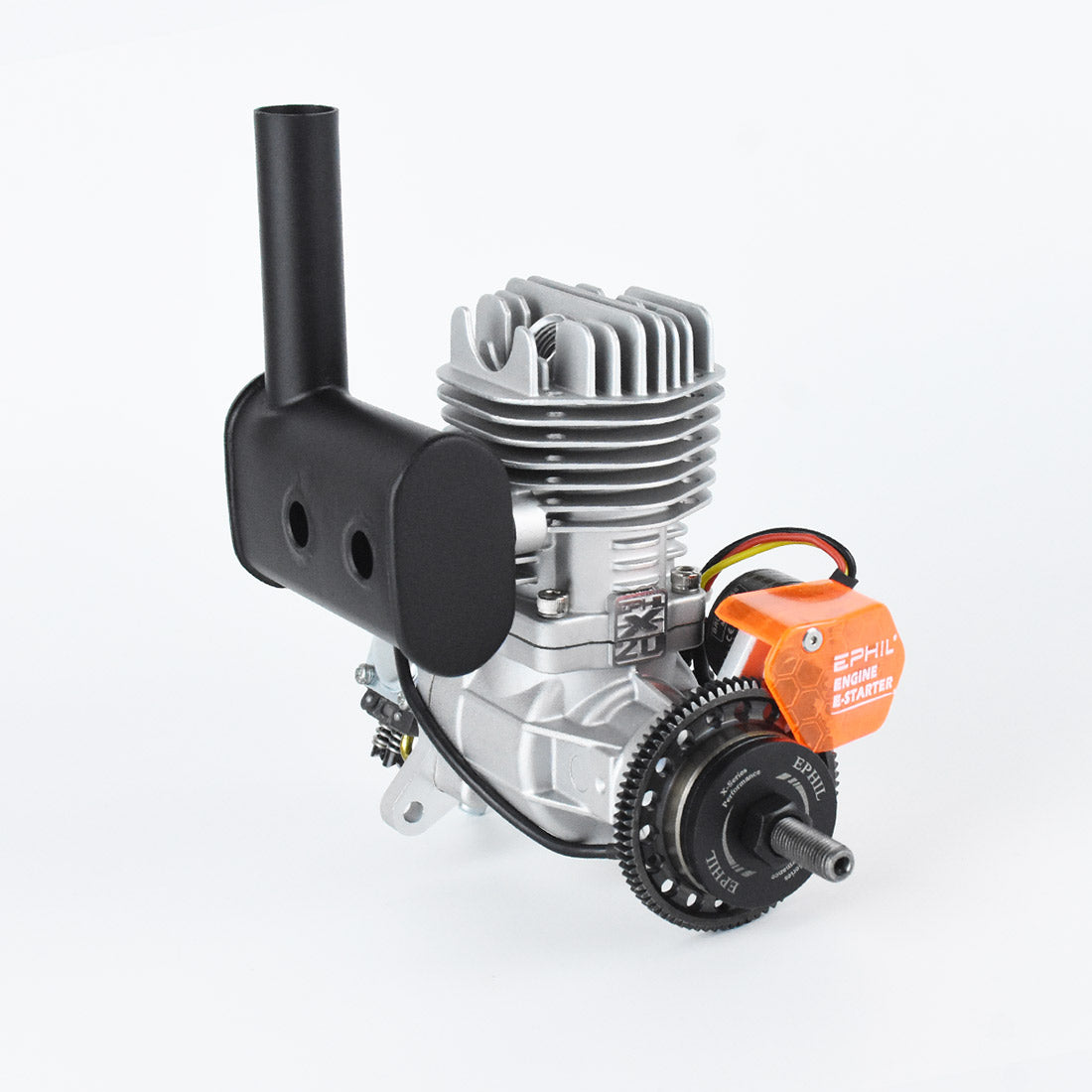

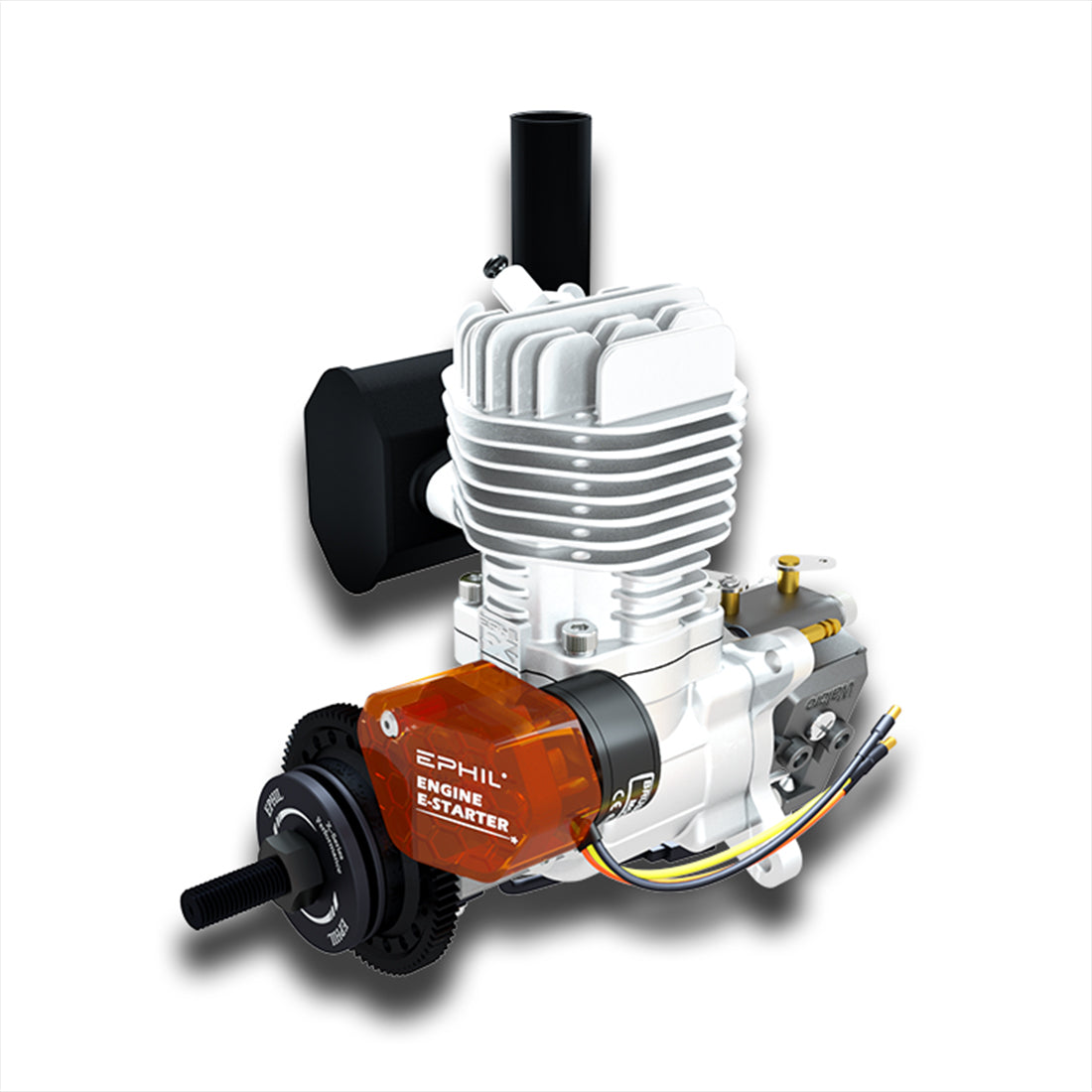

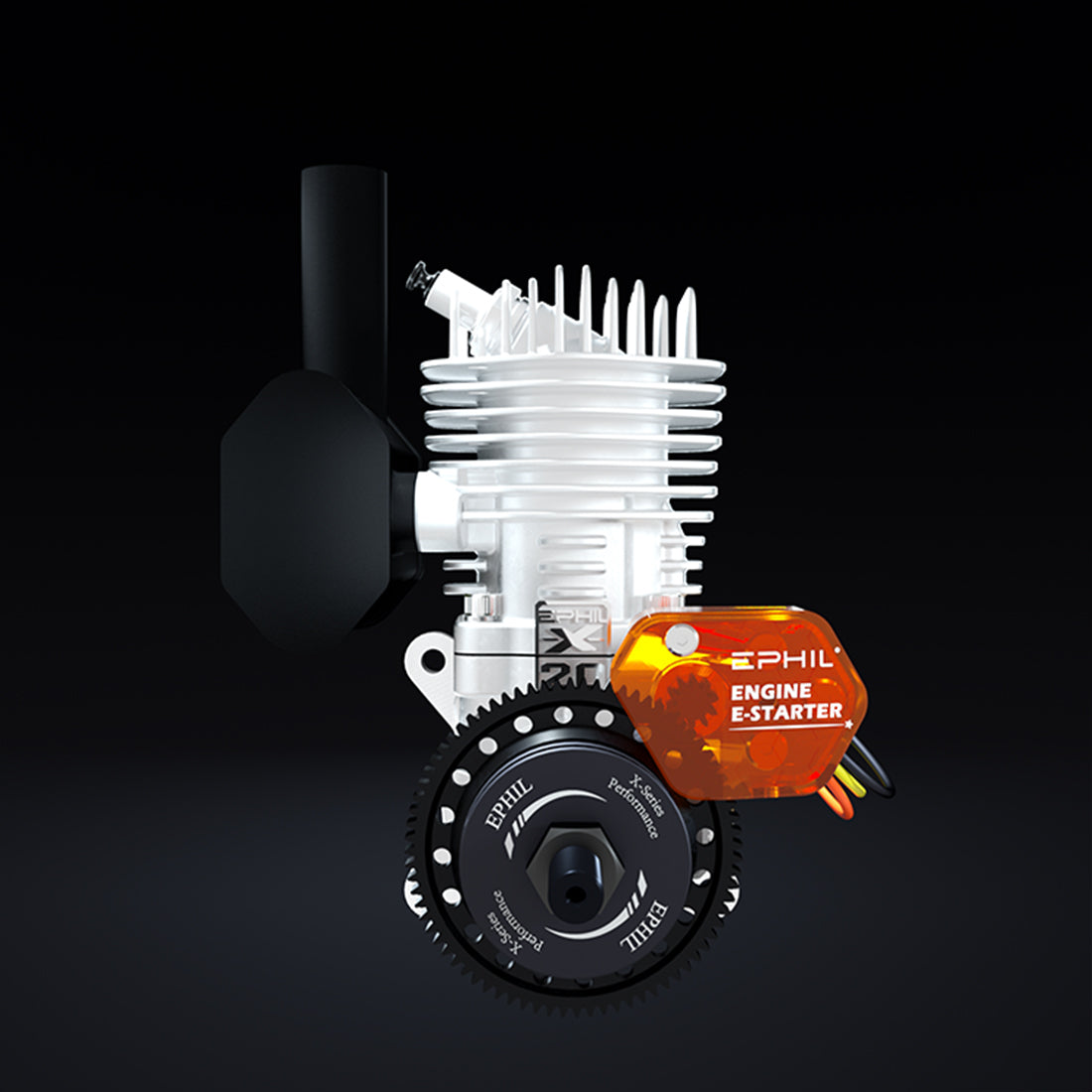

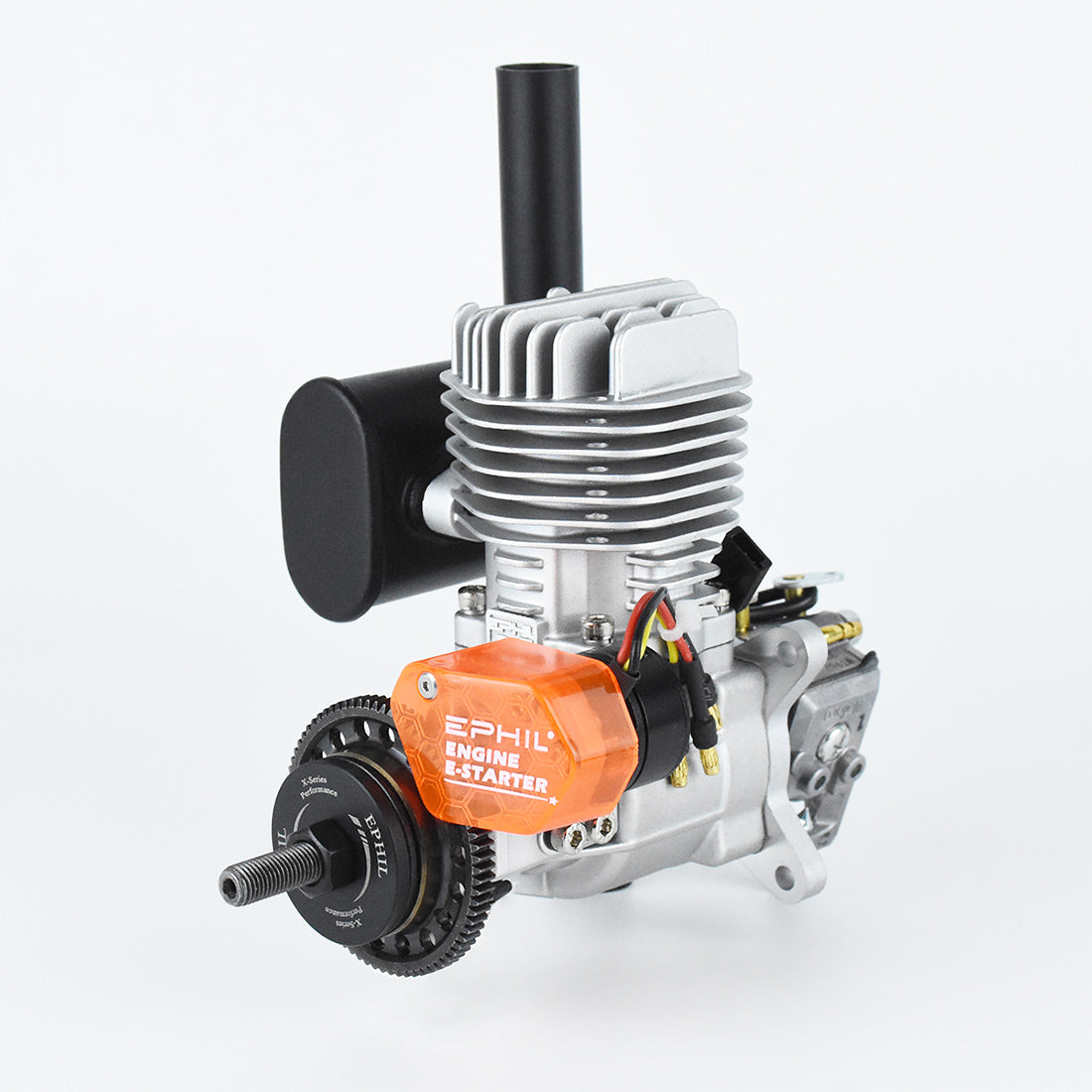

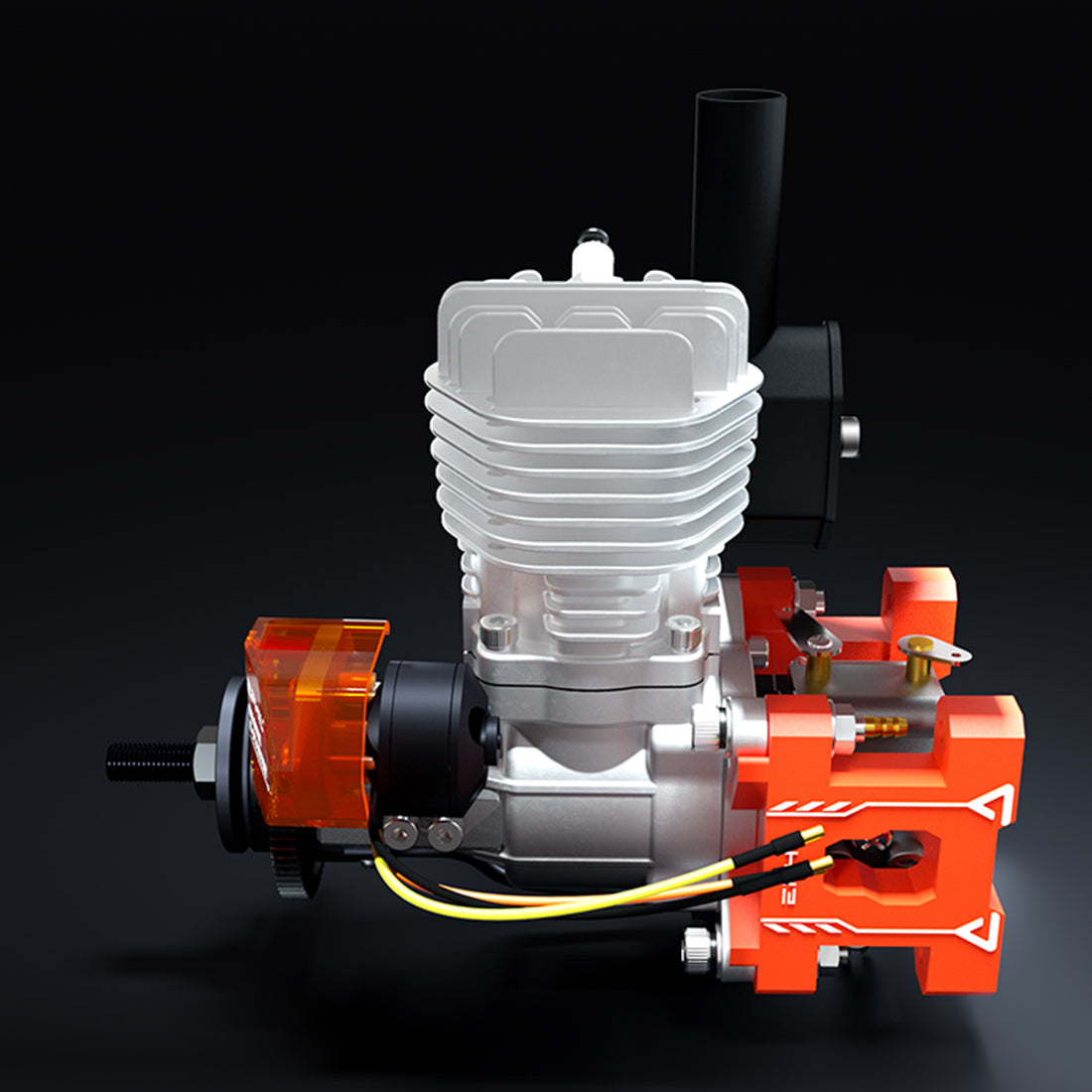

EPHIL X-20cc-S Pro Electric Startar Two-Stroke Single Cylinder Side Exhaust Gasoline Engine Model for Fixed-Wing Aircraft Models

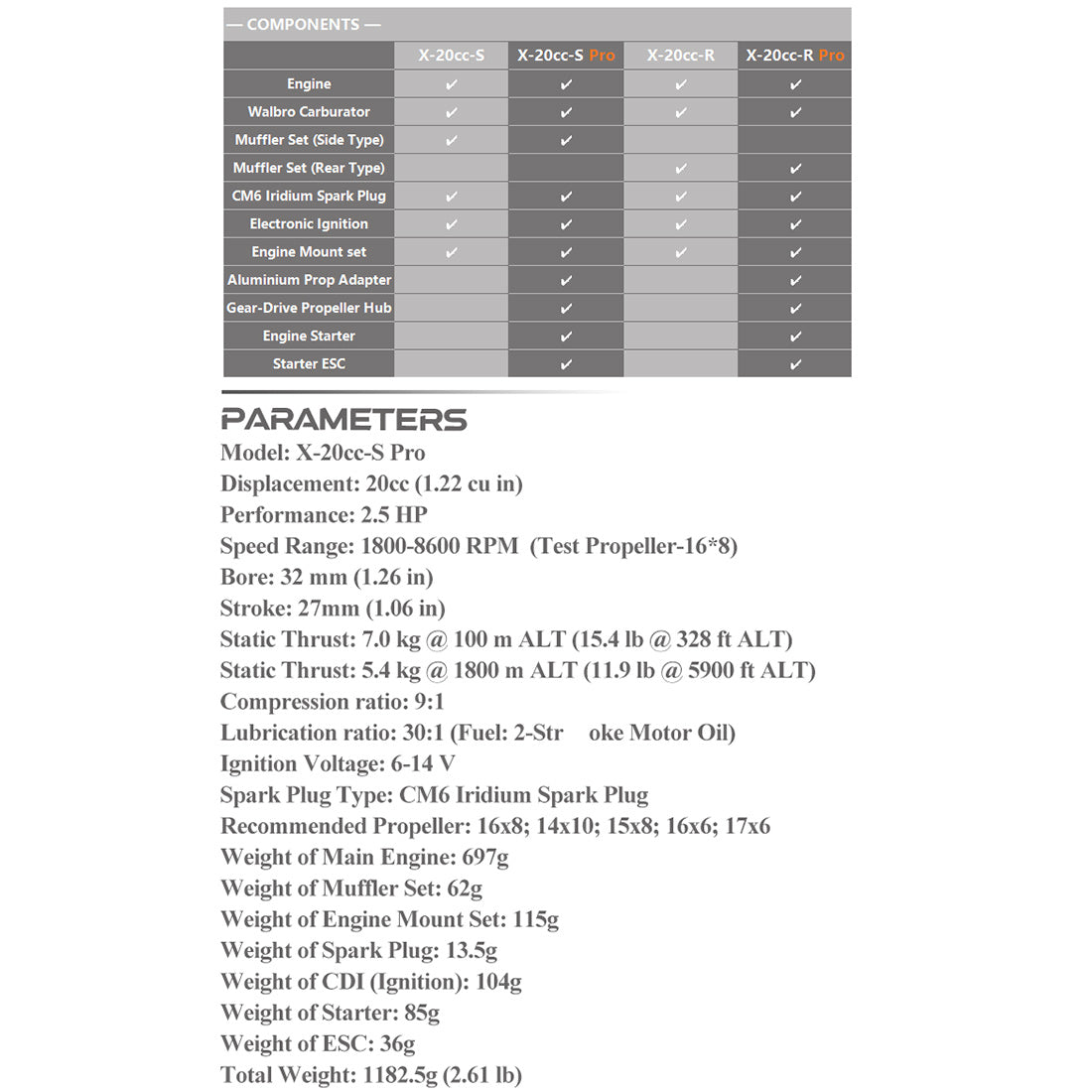

Parameters:
Material: Metal
Brand: EPHIL
Model: X-20cc-S Pro
Displacement: 20cc (1.22 cu in)
Performance: 2.5 HP
Speed ​​Range: 1800-8600 RPM (Test Paddle-16*8)
Bore: 32 mm (1.26 in)
Stroke: 27 mm (1.06 in)
Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)
Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)
Compression Ratio: 9:1
Lubrication Ratio: 30:1 (Gasoline: Lubricating Oil)
Ignition Voltage: 6-14V
Spark Plug Type: CM6 Iridium Spark Plug
Applicable Propeller Specifications: Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6
Main Engine Weight: 697g
Exhaust Pipe Weight: 62g
Bracket Weight: 115g
Spark Plug Weight: 13.5g
Ignition Weight: 104g
Starter Weight: 85g
ESC Weight: 36g
Total Weight: 1182.5g (2.61 lb)
Suitable Age: 16+;

Features:
1. Precision manufacturing, stable operation, excellent quality, strong power, easy maintenance, quick start.

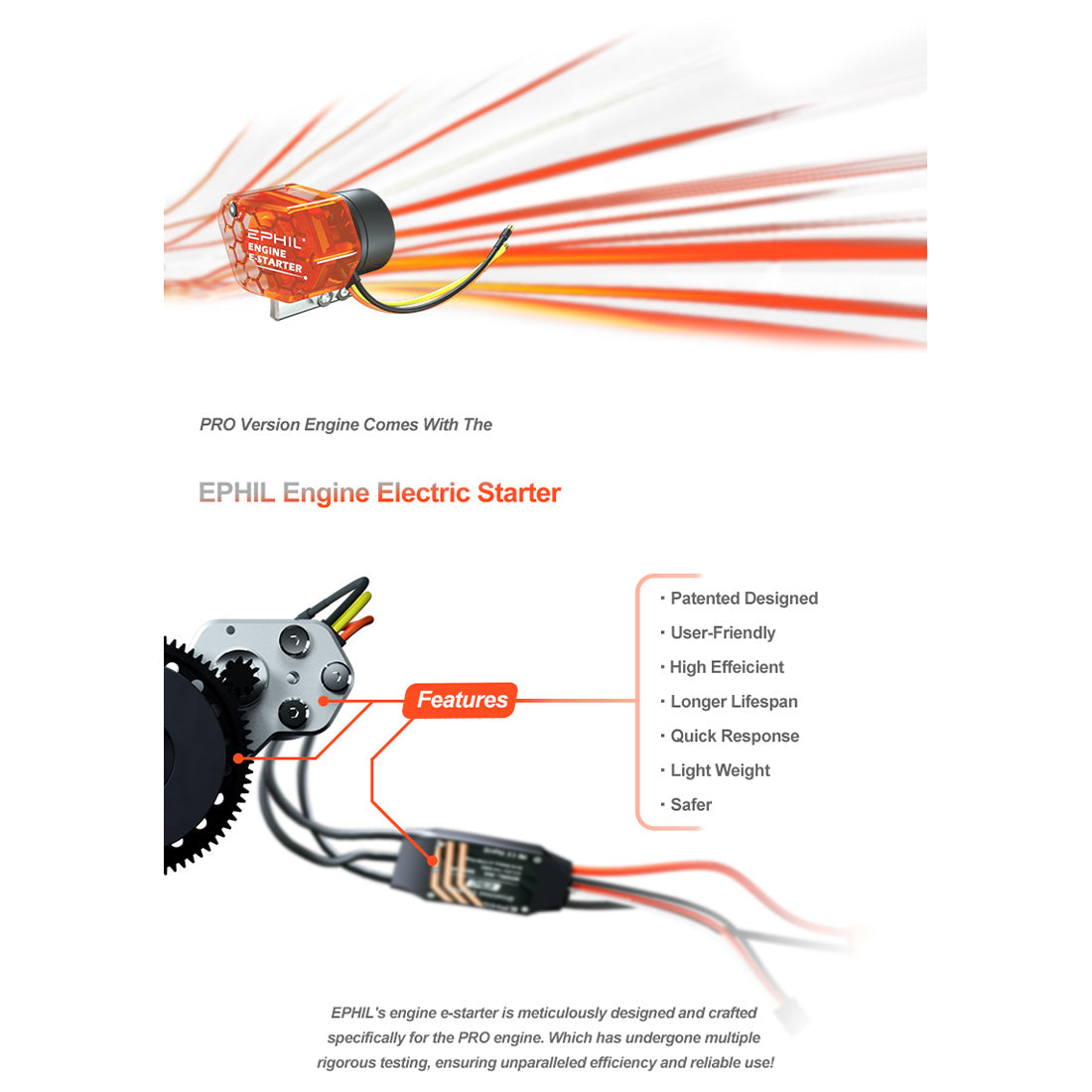

2. The Pro upgraded engine is equipped with electric starter and special electric regulator, so that your aircraft can be started simply and quickly with one button. Numerous tests and good reputation have proved its reliability.
3. The standard CM6 iridium spark plug can show stronger stability in high temperature and high pressure cylinders. Tests show that its life is greatly improved compared with ordinary spark plugs.
4. It is equipped with a special exhaust pipe that can be connected to the smoke system. You can install the smoke system very conveniently, making your aircraft as bright as a meteor in the sky.
5. Our engine is suitable for various types of fixed-wing aircraft models, providing your aircraft with strong power performance, and good working performance will not let you down.

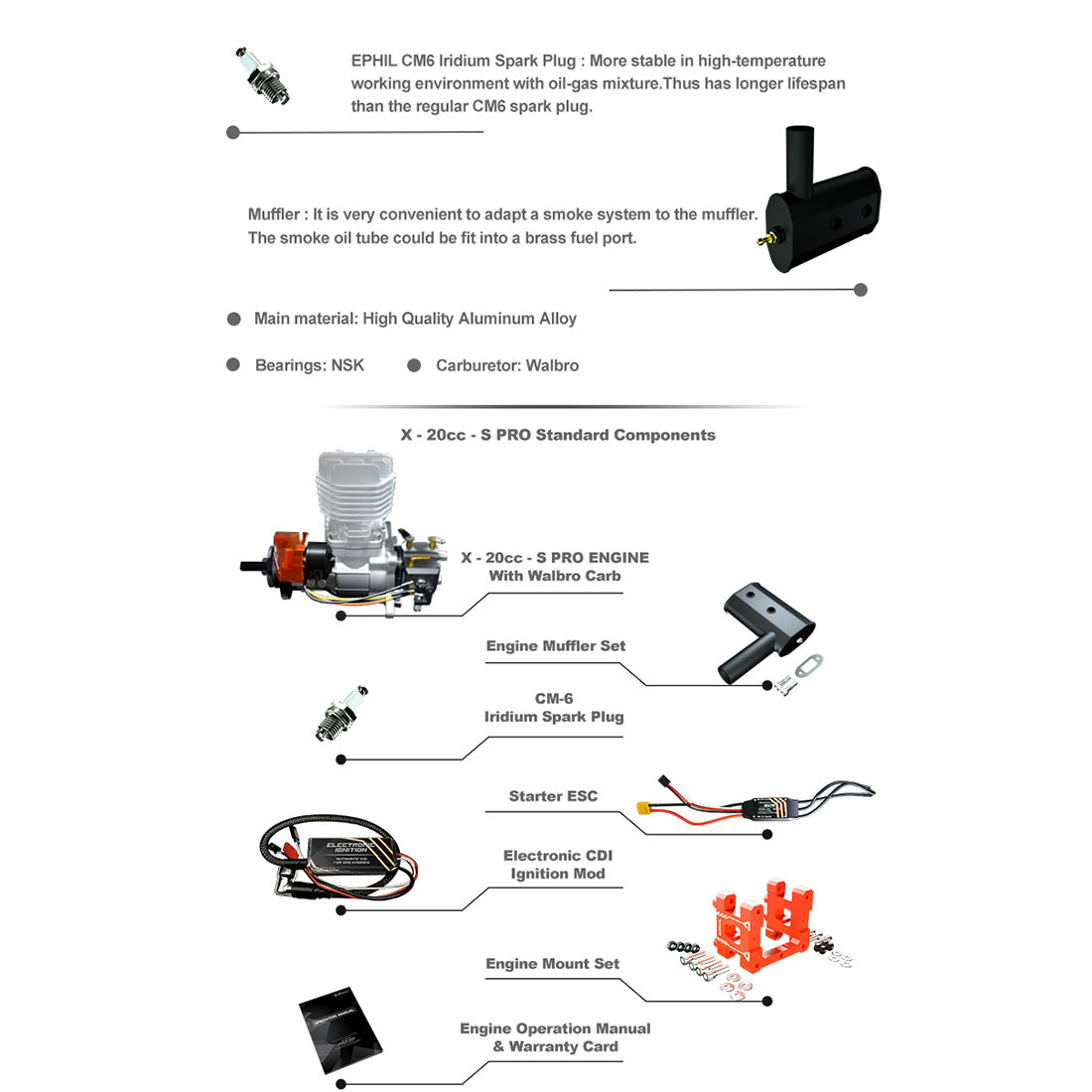

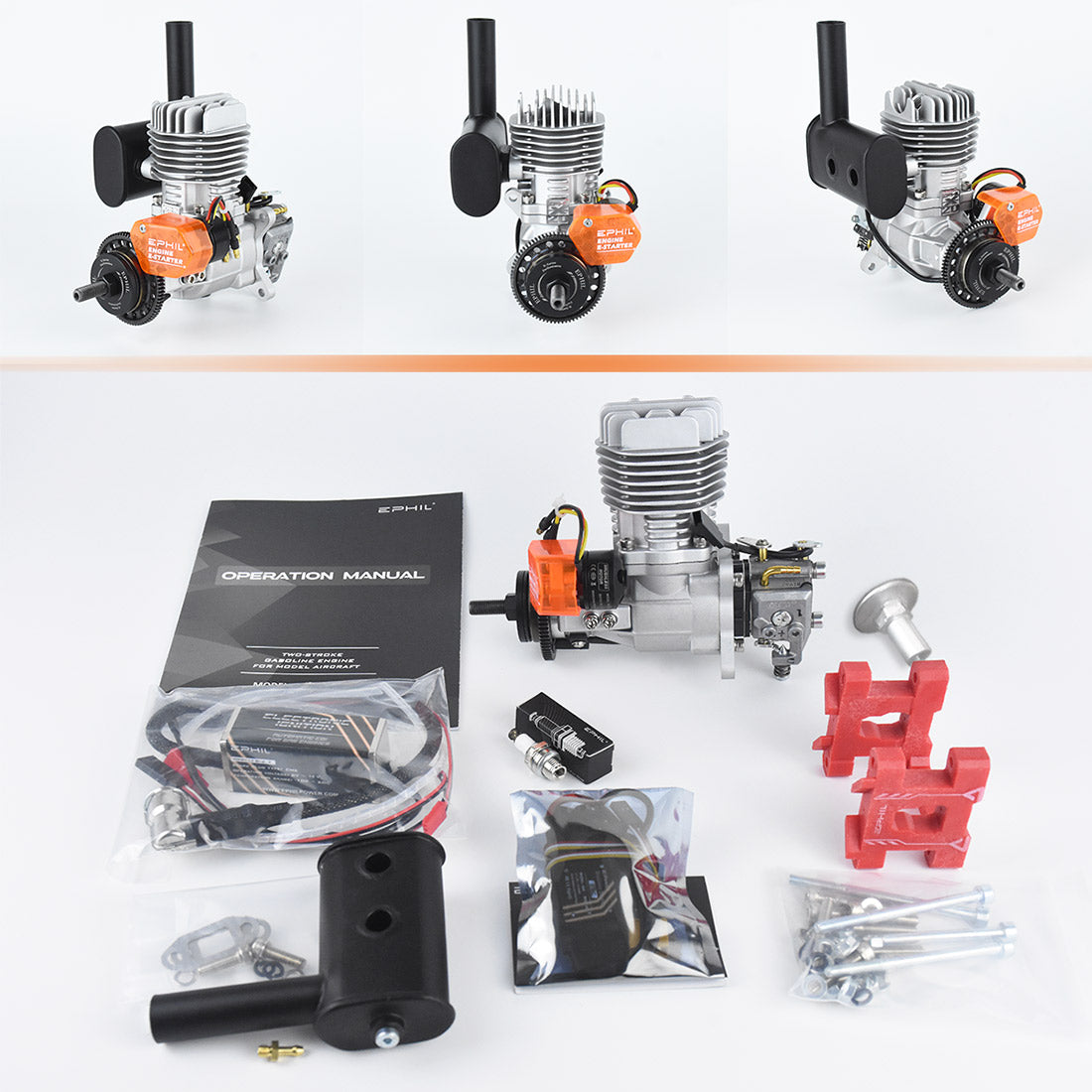

Packing list: engine * 1, exhaust pipe * 1, CM6 iridium spark plug * 1, CDI igniter * 1, engine bracket * 1, propeller shaft adapter * 1, gear-driven propeller shaft * 1, electric starter * 1, ESC electric regulator * 1, user manual and warranty card * 1
