HDMI 10.2-Inch 720P Display Screen, Dual-Receiver FPV Display for Video Transmission Devices with HIMI

Product Specifications:
Product Name: Monitor with DVR Recording
Material: Electronic Components
Color: Black
Display Resolution: 1280×720
Backlight: LED
Backlight Brightness: 1000 Lux
Aspect Ratio: 16:9
Response Time: 10 ms
Color System: PAL/NTSC
Operating Voltage: DC 3S–6S battery
Operating Current: 1.74A @ 3S, 850mA @ 6S
Input Signals: Video (PAL/NTSC), HDMI
Output Signals: Video (PAL/NTSC), HDMI
USB 5V Output: 1A (when input voltage is ≥12V)
DVR Resolution: D1/VGA/QVGA
Maximum Supported TF Card Capacity: 64GB
Antenna Sensitivity: 5.8 GHz sensitivity -93 dB
Antenna Connector: SMA female thread with internal pin

Product Features:
1. High-definition large screen with a wide field of view
Equipped with a 10.2-inch screen offering 1280×720 high-definition resolution, it lets you enjoy clearer visuals during flight, enhancing the immersive experience and operational accuracy.
2. High-Brightness LED Backlight
With a backlight brightness of 1000 Lux, it maintains excellent display performance even under strong sunlight, making it ideal for outdoor flight use.
3. Multi-Standard Video Compatibility
Supports video input in both PAL and NTSC standards, ensuring compatibility with various analog signal sources to meet the needs of multiple flight control and monitoring devices.
4. HDMI Input Support
The built-in HDMI input port not only receives signals from the RunCam WiFiLink2 digital video transmitter but also connects to other HD devices, offering broader applicability.
5. Built-in DVR Recording
Supports video recording at D1/VGA/QVGA resolutions and accommodates a built-in 64GB TF card. No external recording device is required, allowing you to easily capture exciting footage during flight.
6. Robust Power Compatibility
Compatible with 3S–6S batteries, it provides stable power support while offering a 5V 1A USB output (when the input voltage is ≥12V) to supply additional power to other devices.
7. High Sensitivity and Strong Interference Resistance
With a 5.8G sensitivity of -93dB, it effectively enhances the stability of received signals and the reliability of long-distance transmission, reduces signal interference, and ensures clear video transmission.

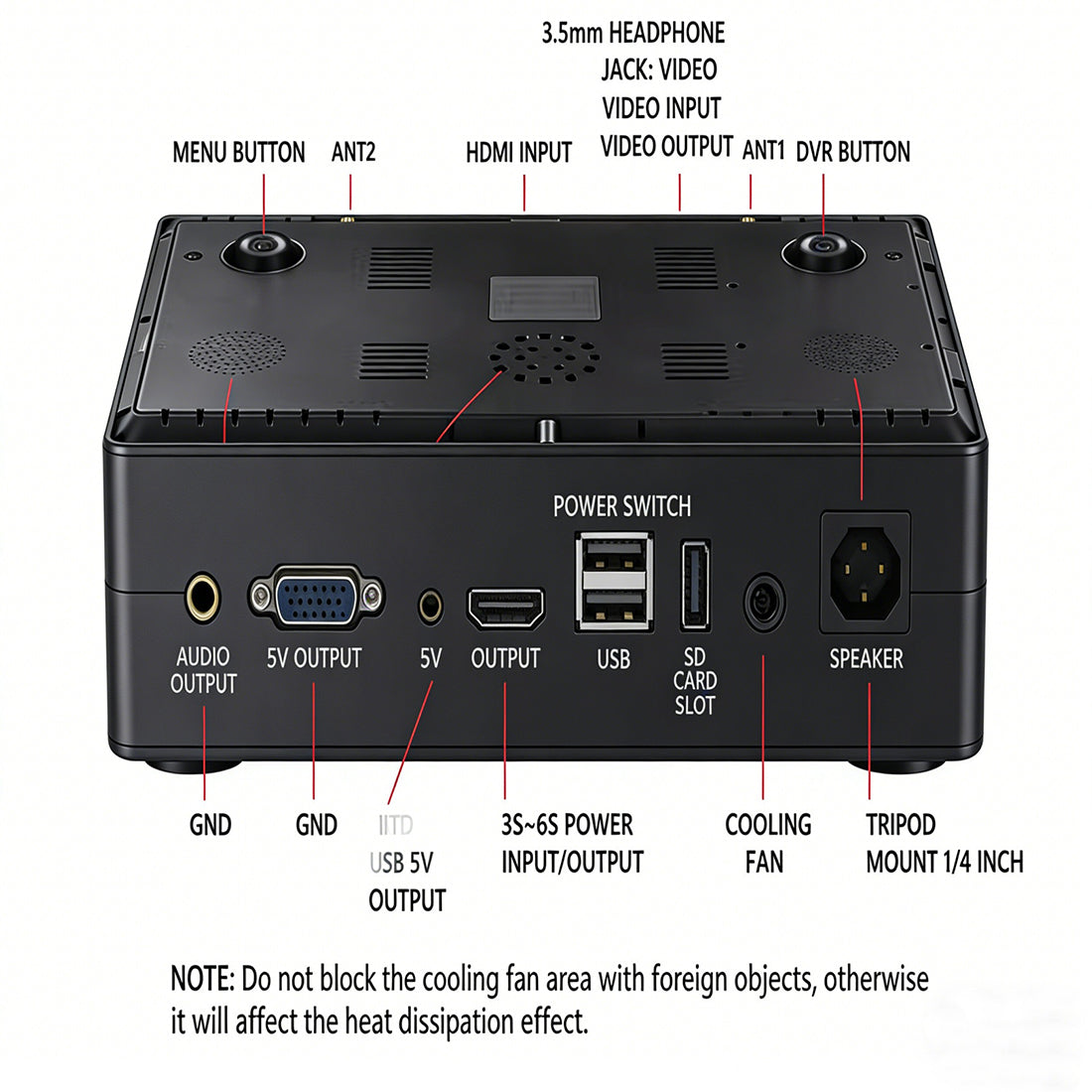

8. High-Quality Engineering Interfaces
Features SMA female threaded connectors compatible with various FPV antennas, ensuring more stable connections, enhanced interference resistance, and an improved flight experience.
9. Portable and User-Friendly
With a total weight of 1.13 kg (including dual receivers and DVR), it is more portable than other bulky displays, making it suitable for outdoor use without adding excessive burden.
10. Optimized Power Consumption Design
Supports 3S and 6S battery power, with an optimized power consumption design that ensures stability and extended battery life during long flight sessions.

Package Dimensions: 300mm × 200mm × 60mm

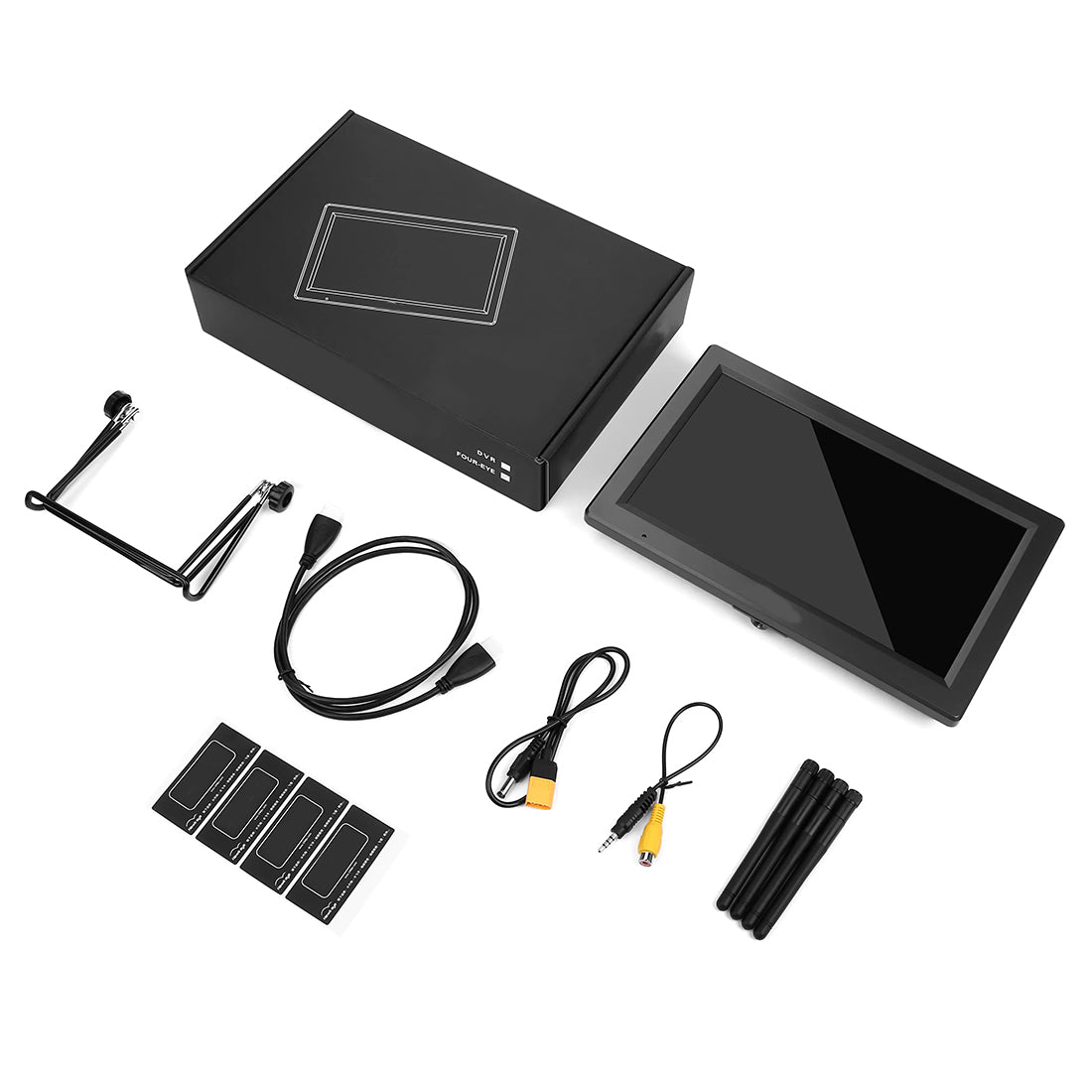

Package Contents:
Black display screen × 1
HDMI cable × 1
Power cable × 1
Receiver antennas × 4
Sticker × 1
