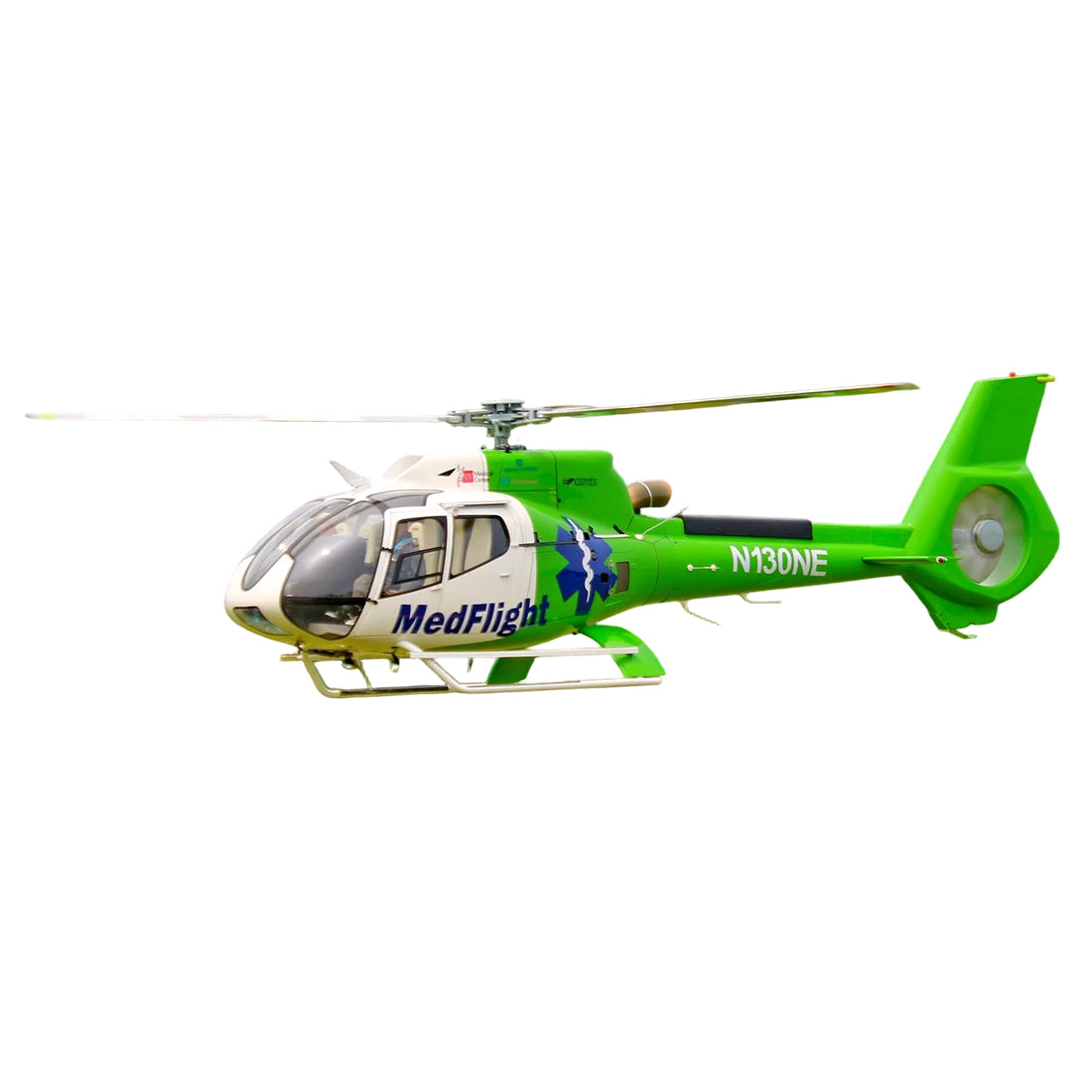

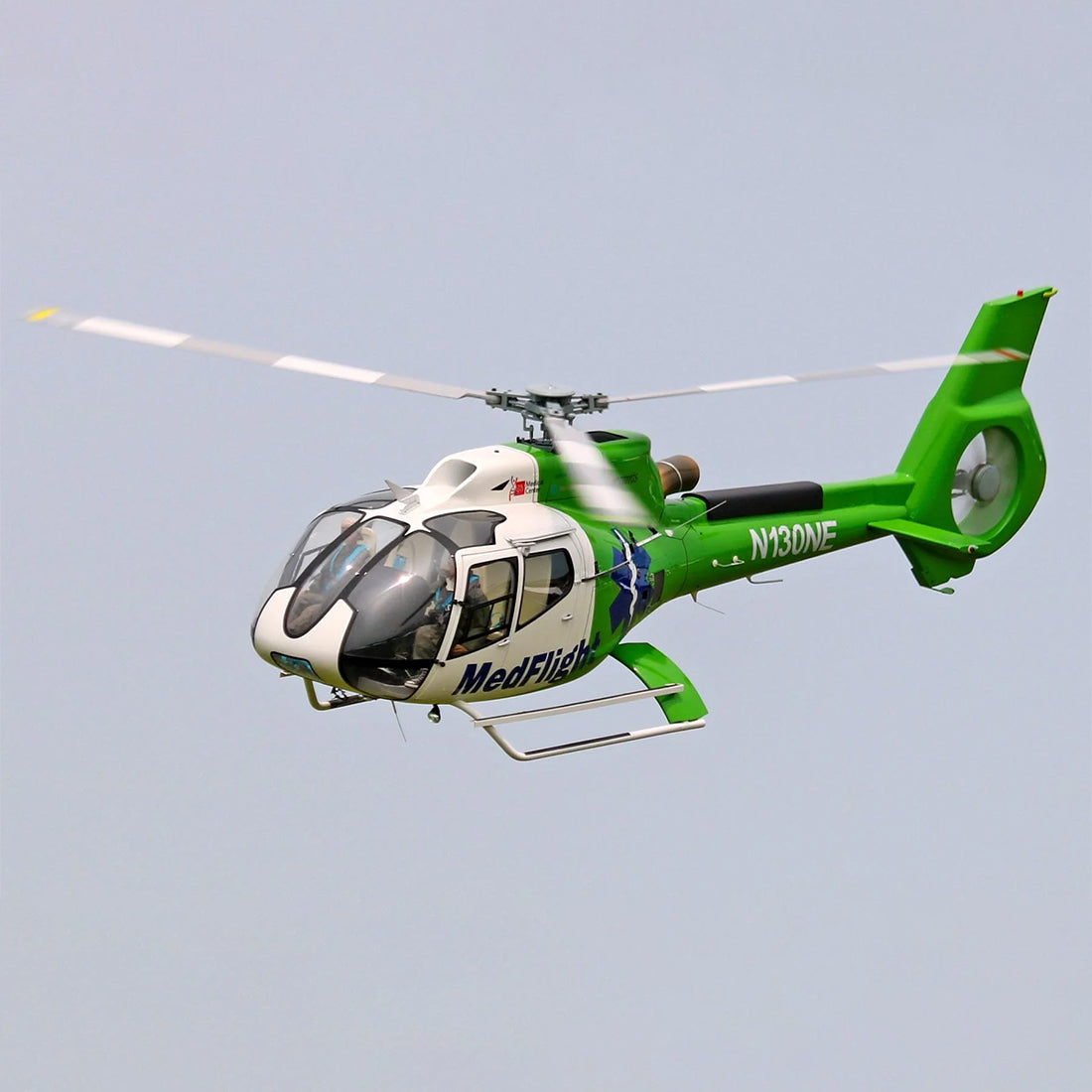

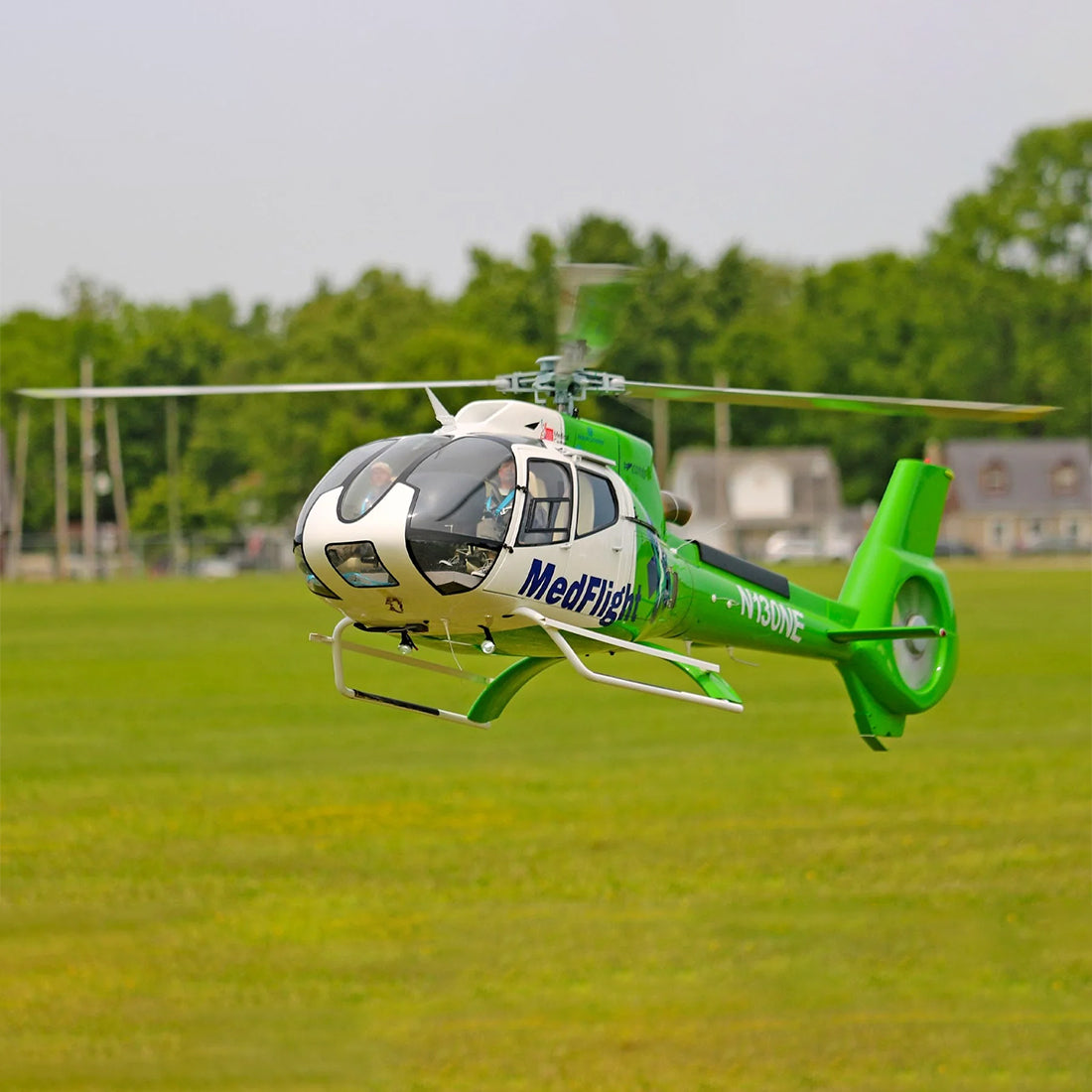

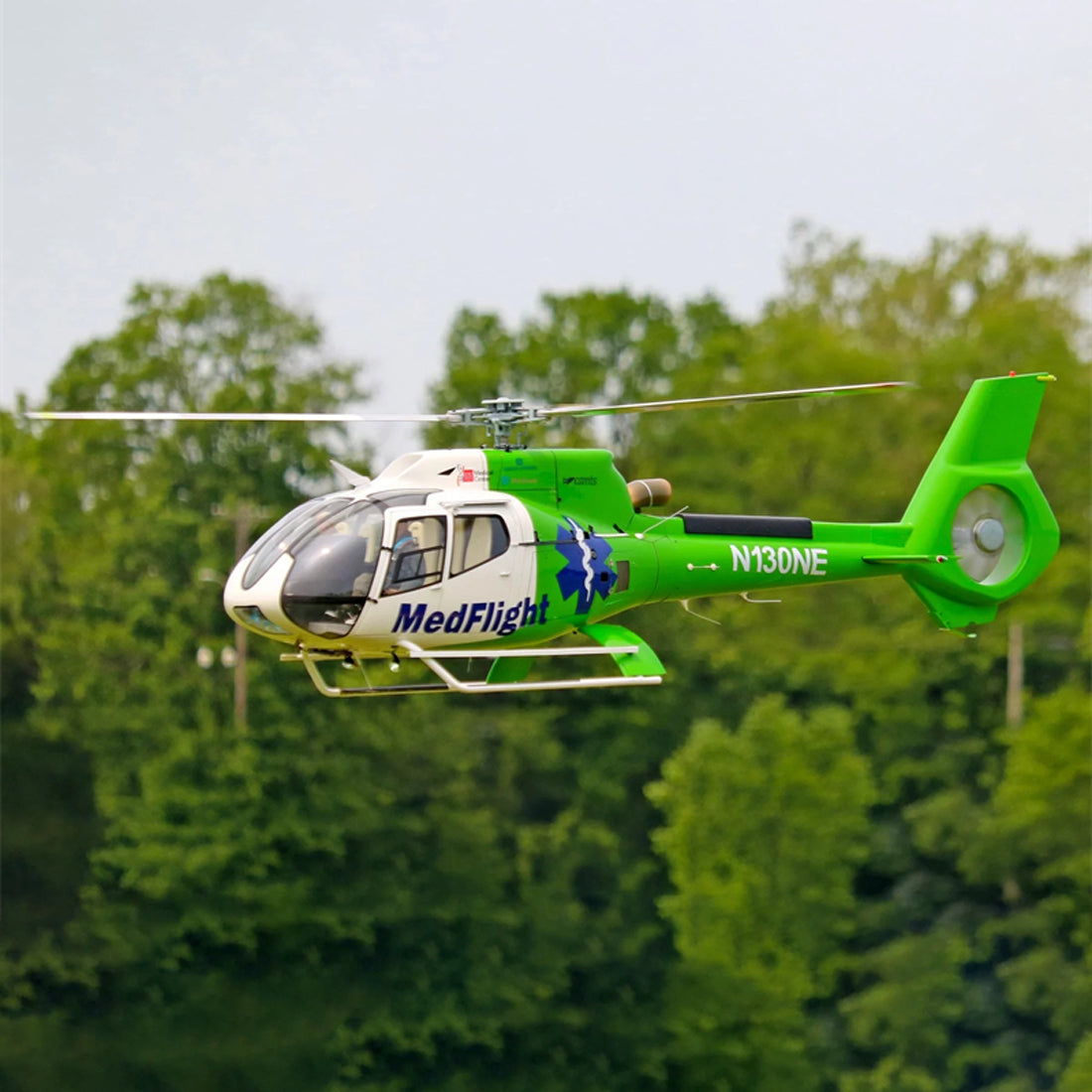

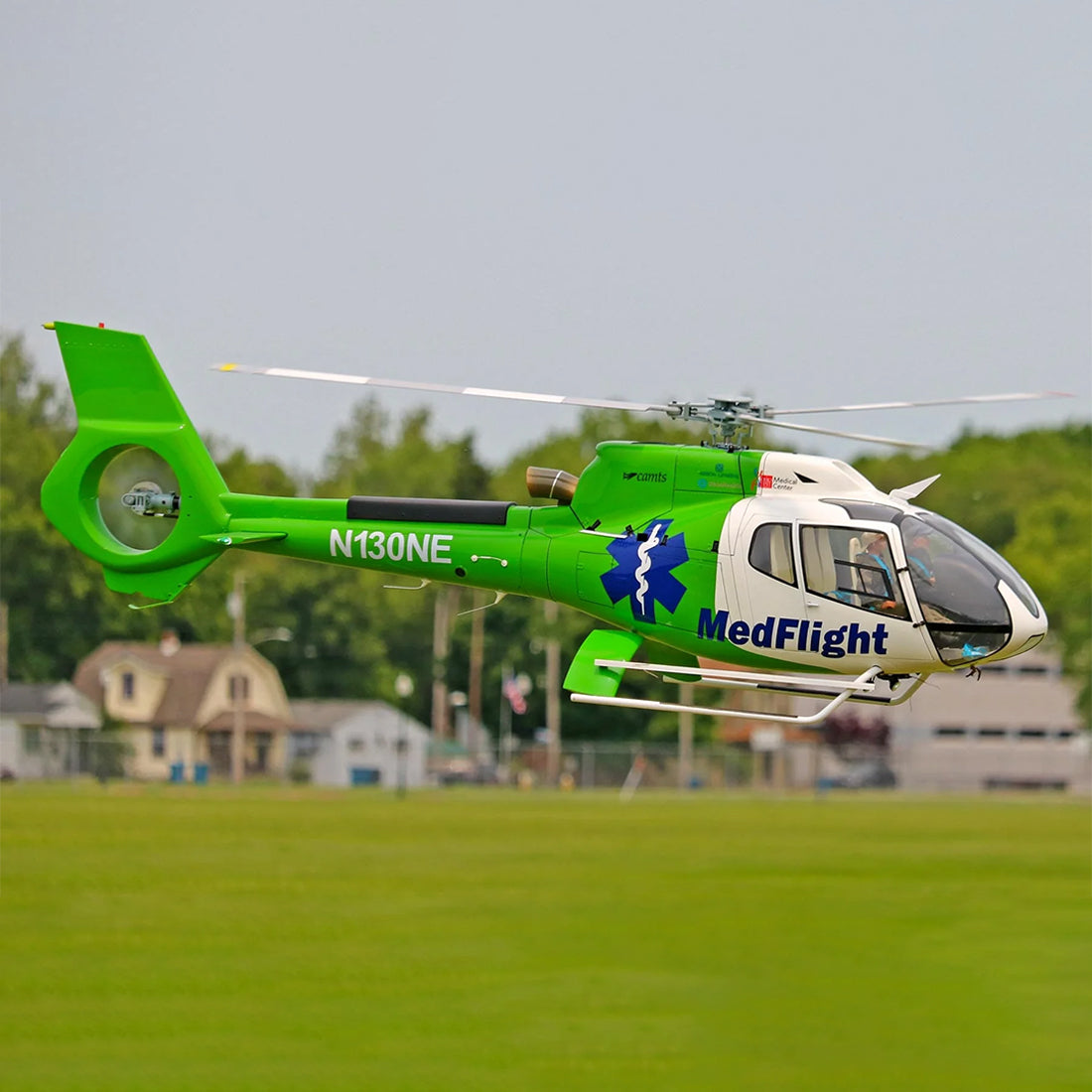

RAZORDON EC130 800-Class 2.4G 6CH Scale RC Helicopter with H1 PRO Flight Controller & GPS Positioning RTF

Product Specifications

General

• Material: Fiberglass
• Dimensions: 176 × 35.5 × 51 cm
• Mechanics Weight: 12,000 g (26.5 lb)
• Fuselage Weight: 8,000 g (17.6 lb)
• Total Weight: Approx. 20,000 g (44.1 lb)
• Color: As shown in product images

Power System

• Motor: COMBOVE TYPE 4730-520KV Brushless Motor
• ESC: HobbyWing 180A Brushless ESC
• Cooling Fan: Yes

Flight Control System

• Flight Controller: FLYWING H1 PRO Flight Controller
• Servos: GDW BLS892 Servo × 3 + GDW BLS895 Servo × 1
• Servo Arms: Metal Servo Arms × 4

Rotor Head System

• Rotor Head: CNC Precision DFC Rotor Head
• Design: Low Center-of-Gravity DFC Structure
• Main Rotor System: High-precision mechanical rotor head designed for improved stability and reduced vibration

Tail System

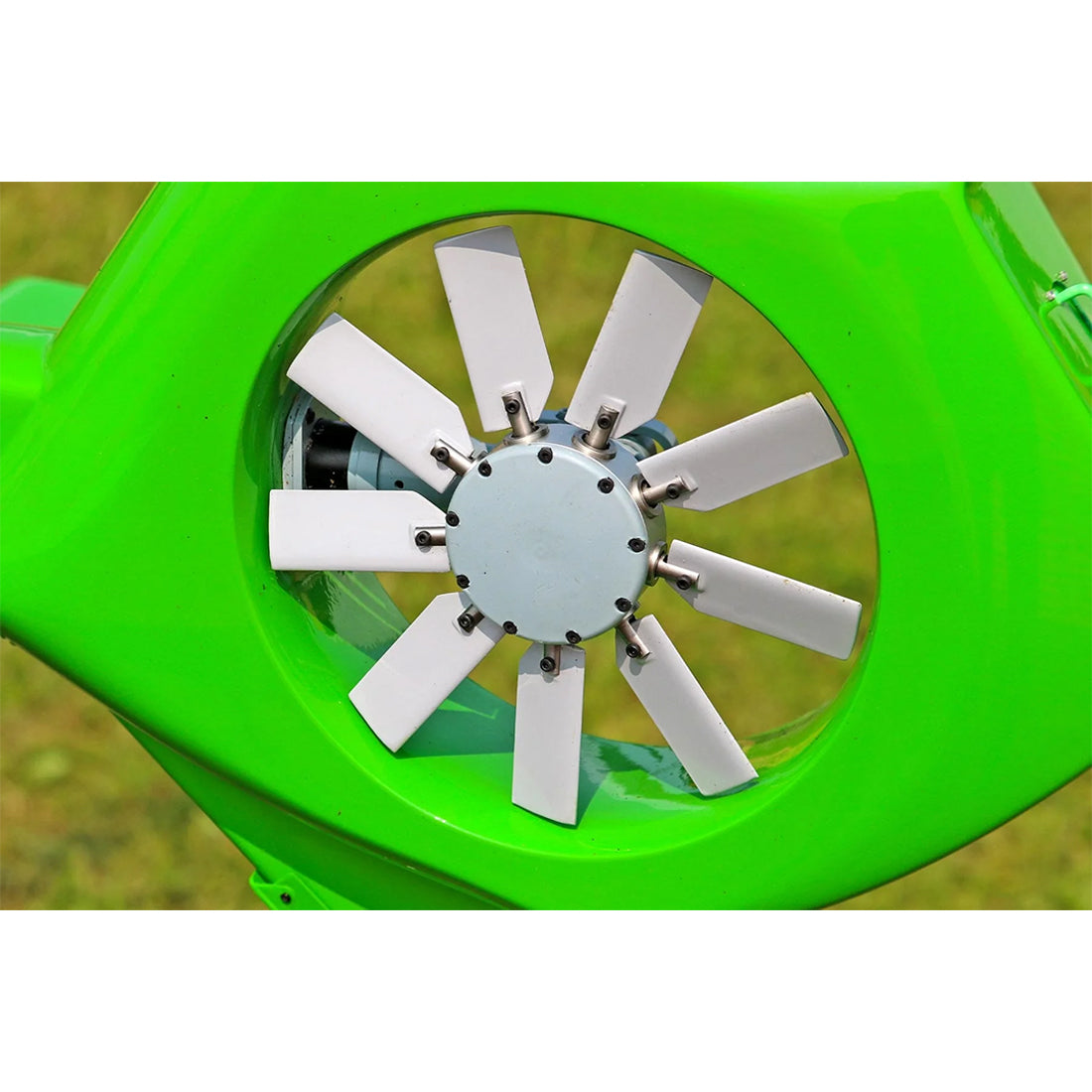

• Tail Drive: Torque Tube Drive

Landing Gear

• Landing Gear Type: Fixed Landing Gear

Radio System

• Transmitter: FlySky FS-i6
• Receiver: FlySky IA10B

Battery & Charging

• Battery Requirement: 2 × ACE 5000mAh 6S LiPo Batteries
• Charger: Dual-Channel 6S LiPo Charger

Scale Features

• Navigation Lights: Yes
• Cockpit: Illuminated Scale Cockpit with Built-in Lighting
• Cockpit Details: Realistic cockpit interior with opening cabin door and detailed instrument panel design

Product Features

1. Ultra-Realistic EC130 Scale Design

The RAZORDON EC130 800-Class RC Helicopter features an ultra-realistic fiberglass scale fuselage, faithfully recreating the appearance of the real EC130 helicopter.

Designed for collectors and serious RC enthusiasts, it features highly detailed scale elements including:

• Realistic cockpit design
• Opening cabin door
• Detailed instrument panel
• Scale windows and windshield
• Authentic fuselage lines
• Realistic exhaust and exterior details

Every detail is designed to deliver an immersive real helicopter experience.

2. Advanced FLYWING H1 PRO Intelligent Flight Control System

Equipped with the next-generation FLYWING H1 PRO flight control system, providing intelligent stabilization and advanced positioning capabilities.

The H1 PRO system features:

• Anti-interference CAN bus technology
• Intelligent flight assistance functions
• BeiDou + GPS multi-mode positioning support
• Fast satellite acquisition
• Strong signal stability
• Excellent anti-interference performance

With GPS positioning technology, the helicopter supports:

• Fixed-point hovering
• Altitude hold
• Automatic hovering
• Position locking
• Stable flight when control sticks are released

Simply release the control sticks, and the helicopter automatically maintains balance and stabilizes its attitude, reducing pilot workload and improving flight confidence.

3. Powerful Dual 6S Power System

Powered by 2 × ACE 5000mAh 6S LiPo batteries, the EC130 delivers excellent power efficiency and extended flight endurance.

The high-performance power system provides:

• Strong lifting capability
• Smooth power output
• Longer outdoor flight sessions
• Reliable performance for large-scale helicopter operations

4. High-Precision CNC DFC Rotor Head System

The EC130 is equipped with a CNC-machined high-precision DFC rotor head featuring a premium metallic finish.

The advanced rotor head design provides:

• Lower center of gravity
• Compact mechanical structure
• Reduced flight vibration
• Improved power transmission efficiency
• Reduced component wear

Combining outstanding visual appeal with enhanced flight performance.

5. Highly Detailed Scale Appearance

The EC130 design closely follows the real aircraft’s appearance, recreating iconic helicopter details with exceptional realism.

Features include:

• Scale cockpit structure
• Realistic front windshield
• Detailed side windows
• Authentic body proportions
• Integrated navigation lighting

The result is a large-scale RC helicopter that delivers both impressive presence on the ground and an unforgettable flying experience.

Product List

(Shipped in Three Separate Packages)

Package 1:

• Helicopter Power System
• 2.4GHz Transmitter
• Dual-Channel Charger

Package 2:

• Helicopter Fuselage

Package 3 (Battery Shipment):

• 2 × ACE 5000mAh 6S Batteries

Note:
Batteries are shipped separately via Air Freight for safety compliance and faster handling.

Shipping Method

Main Products: Sea Freight

Batteries (Package 3): Air Freight

Estimated Delivery Time

Approximately 30 days

(The sea freight delivery time may vary depending on destination, customs clearance, and local logistics conditions.)

Recommended Age

16+

Important Safety Notice

RC helicopters are high-performance products that require responsible operation.

1. Always maintain a safe distance from people, animals, buildings, and property during flight.
2. Before every flight, carefully inspect all critical components, including:

• Main rotor holder screws
• Tail rotor holder screws
• Ball links
• Mechanical connections
• Fuselage and structural components

Make sure all screws and fasteners are properly secured with thread-locking adhesive where required before operation.

3. Damaged components, improper assembly, incorrect maintenance, or unfamiliar operation may result in loss of control, equipment damage, serious injury, or unexpected accidents.
4. The operator assumes full responsibility for safe operation of this product.

Always perform a complete pre-flight inspection before every flight.
